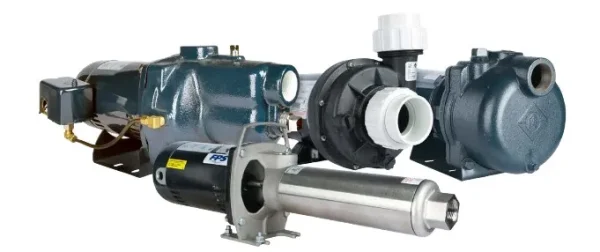

Franklin Electric Replacement Parts
Franklin Electric replacement parts for every pump series in the Franklin Electric lineup are available at Ken’s Distributing Company (Kendisco), one of the most trusted Franklin Electric distributors serving agricultural, residential, commercial, municipal, and industrial customers. Whether you need a mechanical seal for a VersaJet shallow well jet pump, an impeller for an AG Series centrifugal pump, a rebuild kit for a Turf Boss self-priming pump, or hardware for a gas engine driven FBSGF unit, Kendisco has the genuine Franklin Electric parts you need to restore your pump to full performance.
This page serves as the central parts hub for the entire Franklin Electric pump lineup at Kendisco. Use the series navigation below to find replacement parts for your specific pump model. If you know your part number, contact Ken’s Distributing directly and the team will confirm availability and get your order processed quickly.
Why Use Genuine Franklin Electric Replacement Parts?
Using genuine Franklin Electric replacement parts rather than aftermarket alternatives is the most reliable way to restore your pump to its original performance specifications and protect its long-term service life. Here is why it matters.
- Genuine parts are engineered to the exact tolerances of your pump model, ensuring proper fit and full performance restoration after installation
- Replacing worn seals, impellers, and bearings with authentic Franklin Electric components prevents leaks, loss of pressure, and secondary damage to the volute casing and shaft
- Routine maintenance with genuine Franklin Electric repair parts consistently extends pump service life beyond what aftermarket alternatives can achieve
- Authentic parts maintain the energy efficiency of your pump, reducing power consumption and operating costs over the service life of the equipment
- Using genuine parts keeps your pump operating safely and reliably, protecting both your equipment and the water supply systems it serves
Franklin Electric Replacement Parts by Pump Series
Ken’s Distributing Company carries genuine Franklin Electric replacement parts across all major pump series. Use the tables below to navigate to the parts page or product page for your specific series. If your series is not listed or you need help identifying a part number, contact Kendisco directly.
Jet Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| VersaJet | Shallow Well Jet Pump | Impeller, mechanical seal, ejector assembly, pressure switch, foot valve |
| VersaJet Pro | Premium Shallow Well Jet Pump | Impeller, mechanical seal, ejector assembly, motor adapter |
| SWJ Series | Non-Corrosive Shallow Well Jet Pump | Thermoplastic impeller, mechanical seal, ejector kit |
| C-Series | Convertible Jet Pump | Impeller, ejector kit, mechanical seal, pressure tank fitting |
| Convertible Pro RM2 | Premium Convertible Jet Pump | Impeller, mechanical seal, ejector assembly, motor adapter |
Close-Coupled Centrifugal Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| AG Series | Agricultural Close-Coupled Centrifugal | Impeller, mechanical seal, pump case, motor adapter, shaft sleeve, gasket kit |
| HC Series | High-Capacity Close-Coupled Centrifugal | Impeller, mechanical seal, pump case, bearing, volute |
| D Series | General Purpose Close-Coupled Centrifugal | Impeller, mechanical seal, pump case, motor adapter, O-ring |
| DR Series | Drainage Close-Coupled Centrifugal | Impeller, mechanical seal, pump case, shaft sleeve |
| FAC Series (1/2 to 2 HP) | Residential Close-Coupled Centrifugal | Impeller, mechanical shaft seal (305463029), case gasket, motor adapter, flinger |
| FAC Series (3 to 5 HP) | Commercial Close-Coupled Centrifugal | Impeller, mechanical shaft seal (305457011), shaft sleeve (305458011), O-ring |
| XS Series | Compact Close-Coupled Centrifugal | Impeller, mechanical seal, pump case, motor adapter |
| FBC Series | Corrosion-Resistant Close-Coupled Centrifugal | Volute (305462047), gasket (305462062), studs (305462224), hardware |
Self-Priming Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| Turf Boss (1 to 2 HP) | Close-Coupled Self-Priming | Impeller, mechanical seal, pump case, wear plate, priming port plug |
| Turf Boss (3 to 5 HP) | Close-Coupled Self-Priming | Impeller, mechanical seal, pump case, wear plate |
| FBSE Series | Close-Coupled Self-Priming | Impeller, mechanical seal, pump case, wear plate, O-ring |
| FBSEF Series | Close-Coupled Self-Priming, Higher HP | Impeller, mechanical seal, pump case, wear plate |
| FBSTF Series | Frame Mount Self-Priming | Impeller, mechanical seal, seal plate, wear ring, bearing frame hardware |
| FMIT Series | Frame Mount Self-Priming, Solids Handling | Pump case, impeller, seal plate (by model: FMIT-20, FMIT-30, FMIT-40) |
| FTT-20/40 Series | Frame Mount Self-Priming | Impeller, mechanical seal, pump case, wear plate |
Frame Mount Centrifugal Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| FACT Series | Frame Mount Centrifugal | Volute case, impeller, transmission housing (by model: FACT-5, FACT-6, FACT-8) |
| FAOT Series | Frame Mount Centrifugal, Open-Face Impeller | Volute case, impeller, transmission housing (by model: FAOT-4, FAOT-5, FAOT-6) |
| XS Series Frame Mount | Frame Mount Centrifugal | Impeller, mechanical seal, volute case, bearing frame hardware |
| 7.5 Inch Frame Mount | Large-Frame Centrifugal | Volute case, impeller, wear rings, shaft sleeve, mechanical seal |
| 9 Inch Frame Mount | Large-Frame Centrifugal | Volute case NPT CW (305462001), Volute case NPT CCW (305462034), Volute case Flanged (305462013) |
| 10 Inch Frame Mount | Large-Frame Centrifugal | Volute case, impeller, wear rings, shaft sleeve, packing gland |
| 13 Inch Frame Mount | Large-Frame Centrifugal | Volute case, 316SS impeller, wear rings volute (305464003/023/024/036), wear rings seal plate |
| 14 Inch Frame Mount | Large-Frame Centrifugal | Volute case, impeller, bronze wear rings, shaft sleeve, mechanical seal |
Gas Engine Driven Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| FACGF Series | Gas Engine Centrifugal | Pump case, impeller, motor adapter, mechanical seal, engine (Briggs, Honda, Kohler) |
| FNG-23V | Gas Engine End Suction Centrifugal | Pump case (305457001), impeller (305457012), mechanical seal (305457011), wear ring (305457004), case gasket (305457009) |
| FBSGF Series | Gas Engine Self-Priming | Impeller, mechanical seal, pump case, wear plate, engine components |
| FMIG Series | Gas Engine Frame Mount Self-Priming | Impeller, mechanical seal, seal plate, bearing frame hardware |
| FNSGF Series | Gas Engine Self-Priming | Impeller, mechanical seal, pump case, engine components |
| FTSP Series | Gas Engine Centrifugal Self-Priming | Impeller, mechanical seal, pump case, wear plate |
SAE Engine Drive and Hydraulic Driven Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| 9 Inch SAE Engine Drive | Direct Engine Mount Centrifugal | Volute case NPT (305462001), Volute case Flanged (305462013), shaft sleeve, mechanical seal |
| 13 Inch SAE Engine Drive | Direct Engine Mount Centrifugal | Volute case, 316SS impeller, bronze wear rings (by model variant), shaft sleeve |
| 9 Inch Hydraulic Driven | Hydraulic Motor Driven Centrifugal | Volute case NPT CW (305462001), Volute case Flanged (305462013), mechanical seal, shaft sleeve |
| XS439 Water Truck Pump | Water Truck Centrifugal | Shaft sleeve, mechanical seal, packing set, impeller, volute case by rotation and connection type |
Booster Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| BT4 Series | Horizontal Multi-Stage Booster | Stage impellers, mechanical seal, O-rings, inlet and outlet flanges, motor |
| MH Series | Horizontal Multi-Stage Booster | Stage impellers, mechanical seal, O-rings, housing seals, motor |
Grinder Pump and Effluent Pump Replacement Parts
| Series | Pump Type | Common Replacement Parts |
|---|---|---|
| IGP Series | Grinder Pump | Grinder assembly, mechanical seal, motor, check valve, float switch |
| High-Head IGP Series | High-Head Grinder Pump | Grinder assembly, mechanical seal, motor, discharge valve |
| Grinder Pump Retrofit Kit | Replacement and Upgrade Kit | Complete retrofit assembly for existing grinder pump systems |
| FPS-E Series | Effluent Pump | Impeller, mechanical seal, float switch, discharge check valve |
| J-Class E Series | Effluent Pump | Impeller, mechanical seal, float switch, motor |
AG Series Repair Parts: The Most-Ordered Parts at Ken’s Distributing
The Franklin Electric AG Series centrifugal pump repair parts page is consistently one of the highest-traffic and highest-order pages at Ken’s Distributing Company. If you run AG Series close-coupled centrifugal pumps in agricultural or irrigation service, Kendisco stocks the complete range of genuine AG Series repair parts including impellers, mechanical seals, bearings, gasket kits, motor adapters, and volute casings. View the AG Series repair parts page for complete part numbers and ordering information.
How to Order Franklin Electric Replacement Parts from Ken’s Distributing
Ordering the right Franklin Electric replacement parts from Kendisco is straightforward when you have the following information ready.
- Your pump series name (for example, AG Series, Turf Boss, FMIT-30, FAC-300S)
- Your pump model number or order number if available
- The specific part you need (for example, mechanical seal, impeller, pump case, shaft sleeve)
- Your pump HP rating if the series covers multiple HP options
If you have the Franklin Electric part number from a previous order or from the parts table on your specific pump product page, that is the fastest way to confirm availability and place your order. Contact Ken’s Distributing Company directly at kendisco.com with your part number or pump model and the team will help you get exactly what you need.
Frequently Asked Questions
What Franklin Electric replacement parts does Ken’s Distributing carry?
Ken’s Distributing Company carries genuine Franklin Electric replacement parts for the full surface pump lineup including jet pumps, close-coupled centrifugal pumps, self-priming pumps, frame mount centrifugal pumps, gas engine driven pumps, SAE engine drive pumps, hydraulic driven pumps, water truck pumps, booster pumps, grinder pumps, and effluent pumps. Common parts in stock include impellers, mechanical seals, shaft sleeves, pump cases, motor adapters, wear rings, gaskets, O-rings, case gaskets, packing sets, and engine replacement components for gas engine driven models.
How do I find the right Franklin Electric replacement part for my pump?
The best starting point is your pump’s model number or series name. Navigate to the specific pump product page on kendisco.com for your series and scroll to the replacement parts table, which lists part numbers by figure number and model variant. If you need help identifying your pump series or locating a specific part number, contact Ken’s Distributing Company directly and the team at Kendisco will help you identify the correct part for your pump.
Are the parts at Ken’s Distributing genuine Franklin Electric parts?
Yes. Ken’s Distributing Company sources and sells genuine Franklin Electric replacement parts and repair components. Kendisco does not substitute aftermarket or generic parts in place of genuine Franklin Electric components. Using genuine parts ensures your pump is restored to its original performance specifications and that warranty conditions are maintained where applicable.
Can I order hard-to-find parts for older Franklin Electric pump models?
Ken’s Distributing Company has extensive experience sourcing parts for both current and older Franklin Electric pump models. If you are looking for a part for a pump that is no longer in current production, contact Kendisco directly with your pump series name, model number, and the part you need. The team at Kendisco will confirm availability or identify a compatible current replacement if the original part has been superseded.
What is the most commonly ordered Franklin Electric replacement part?
Mechanical seals and impellers are among the most frequently ordered Franklin Electric replacement parts at Ken’s Distributing across all pump series. For the AG Series specifically, impellers, mechanical seals, and complete gasket kits are the top-ordered repair components. For gas engine driven models, replacement engines from Briggs and Stratton, Honda, and Kohler are also commonly ordered through Kendisco.
How quickly can I get Franklin Electric replacement parts from Ken’s Distributing?
Ken’s Distributing Company maintains inventory on the most commonly needed Franklin Electric replacement parts for fast order fulfillment. Contact Kendisco directly at kendisco.com to confirm availability on your specific part and to get current lead time and shipping information for your order.
Ken’s Distributing Company is a trusted Franklin Electric distributor serving residential, agricultural, commercial, municipal, and industrial customers across the region. Whether you need a single seal for a residential jet pump or a full set of repair components for a large-frame centrifugal pump station, Kendisco is the right source for genuine Franklin Electric replacement parts and knowledgeable product support.
