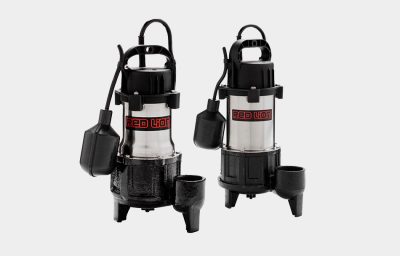

PREMIUM STAINLESS STEEL SUMP/EFFLUENT PUMPS
APPLICATIONS
Ideal for high volume water and effluent removal in residential spaces such as basements, laundry facilities, and crawl spaces.
FEATURES & BENEFITS
- Automatic submersible sump pump Ideal for high-volume water removable applications
- Heavy-duty stainless steel and cast iron construction for years of service and reliability
- Clog-resistant design capable of passing 3/4” diameter semi-solids
- Tethered float switch for reliable automatic operation for use in basins 18” diameter or greater
- Not suitable for pond use
|
Part Number |
Description |
|---|---|
|
640171 |
Tethered Float Switch, Piggyback, 10 ft (3 m) |
|
640172 |
Tethered Float Switch, Piggyback, 20 ft (6.1 m) |
|
14942759 |
RL-SS-RVS Vertical Float Switch, Piggyback, 10 ft (3 m) |
|
Model |
Item Number |
UPC |
HP |
Volts |
Amps |
Disc. |
Cord Length |
Gallons Per Hour at Height |
Shut- Off |
Min Basin Dia. |
On/Off Levels |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0' |
5' |
10' |
15' |
20' |
30' |
|||||||||||
|
RL-SS50T |
14942781 |
0 10121 14437 8 |
1/2 |
115 |
5 |
1-1/2" FNPT |
10' |
3450 |
3000 |
2400 |
1800 |
– |
– |
25' |
18" or more |
On: 13.8''– 14.8'' Off: 5.5''– 6.5'' |
|
RL-SS100T |
14942782 |
0 10121 14438 5 |
1 |
115 |
8 |
2'' FNPT 1-1/2'' FNPT adapter included |
20' |
5300 |
4800 |
4300 |
3700 |
3000 |
1300 |
35' |
18" or more |
On: 15"–18" Off: 7"– 10" |
|
Model |
Length |
Width |
Height |
Weight (lbs) |
Carton Cubes (cu ft) |
Pallet Quantity |
Qty. per Layer |
Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
|
RL-SS50T |
7" |
10.5" |
17" |
22.5 |
0.72 |
40 |
20 |
2 |
|
RL-SS100T |
10" |
11" |
18" |
33.6 |
1.15 |
32 |
16 |
2 |
|
Model |
HP |
Amps |
Voltage |
Watts |
Float Type |
On/Off Levels |
Minimum Basin Diameter |
|---|---|---|---|---|---|---|---|
|
RL-SS50V |
1/2 |
5 |
115 |
520 |
Vertical |
7.5” (191 mm)/4.5” (114 mm) |
11” (279 mm) |
|
RL-SS50T |
1/2 |
5 |
115 |
520 |
Tethered |
14.3” (363 mm)/6” (152 mm) |
18” (457 mm) |
|
RL-SS100T |
1 |
8 |
115 |
925 |
Tethered |
16.8” (427 mm)/8.4” (213 mm) |
18” (457 mm) |
|
Gallons/Liters per Hour |
|||||||
|---|---|---|---|---|---|---|---|
|
At Height: (Head) |
5 ft (1.5 m) |
10 ft (3 m) |
15 ft (4.6 m) |
20 ft (6 m) |
25 ft (7.6 m) |
30 ft (9.1 m) |
Shut Off |
|
RL-SS50V |
3000 / 11,356 |
2400 / 9085 |
1800 / 6814 |
1100 / 4164 |
– |
– |
25 ft (7.6 m) |
|
RL-SS50T |
3000 / 11,356 |
2400 / 9085 |
1800 / 6814 |
1100 / 4164 |
– |
– |
25 ft (7.6 m) |
|
RL-SS100T |
4800 / 18,170 |
4300 / 16,277 |
3700 / 14,006 |
3000 / 11,356 |
2200 / 8328 |
1300 / 4921 |
35 ft (10.7 m) |
|
Discharge Size |
RL-SS50: 1-1/2" FNPT RL-SS100T: 2" FNPT (1-1/2" FNPT adapter included) |
|---|---|
|
Pump Housing |
Stainless Steel and Cast Iron (including volute and screen) |
|
Impeller |
Cast Iron, vortex clog-resistant design – capable of passing ¾” diameter semi-solids |
|
Motor |
Single phase PSC with automatic reset thermal overload protection |
|
Hardware |
300 series stainless steel |
|
Bearings |
Ball bearings |
|
Pump Shaft Seal |
Mechanical, spring-loaded, stationary carbon with Nitrile boot and rotating ceramic seat |
|
Cooling |
The motor housing contains oil to cool the motor and to lubricate the bearings and seals. These pumps can be operated with the motor housing partially exposed for extended periods of time. However, for the best cooling and longest motor life, the liquid level being pumped should normally be above the top of the pump housing. |
