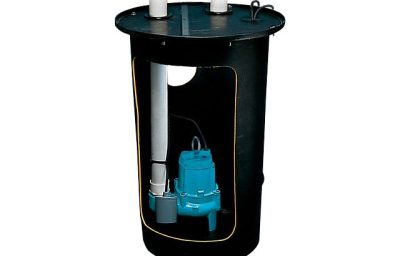

Simplex Sewage Pump System
Click to rate this post!
[Total: 0 Average: 0]
A simplex sewage pump system is used in the collection of sewage, effluent, drainage, toilet and seepage water, evacuation for homes, farms, light commercial and industrial use. These sewage pump systems have the ability to handle both liquids and solid waste up to 2″ diameter where a gravity system will not work, such as in septic systems that are below the main sewer line.
Features & Benefits
- 4/10 or 1/2 horsepower motor
- Basins available in high-density polyethylene or structural foam with fiberglass available as a sub-assembly
- 2″ vent or discharge flange
- Full-flow PVC check valve on 2″ discharge models
- Nylon impeller
- All cast iron pump housing with upper sleeve bearing and lower ball bearing
Overview

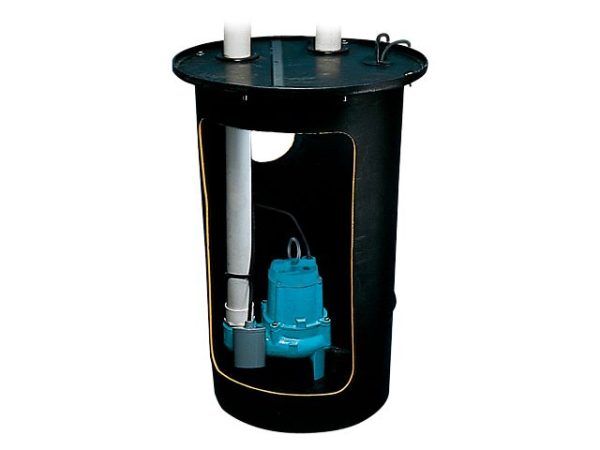

Our simplex sewage pump system features a 4/10 or 1/2 horsepower sewage ejector effluent pump from the 9S or 10S Series (based on selection). Also included are basin/cover assembly and full flow check valve.
Specifications
| Vent | 2″ (51 mm) or 3″ (76 mm) |
| Discharge | 2″ (51 mm) |
| Basin Size | 18″ x 30″ (46 cm x 76 cm) |
| Basin Material | Polyethylene or structural foam |
| Cover Material | Steel or structural foam |
| Pump Options | 9SC, 10SC-2″ |
Performance
| Head | 9SC GPM (LPM) | 10SC – 2″ GPM (LPM) |
| 5′ | 100 (379) | 120 (454) |
| 10′ | 80 (303) | 100 (379) |
| 15′ | 60 (227) | 80 (303) |
| 20′ | – | 44 (167) |
Order Information
Pre-Packaged Simplex Sewage Pump Package System
| Item | Model | Description |
|---|---|---|
| 509044 | 9S-SMPX | Simplex Sewage Package, 4/10 HP sewage pump, 115 V, w/ hole in basin, 2″ discharge, 2″ vent, 18″ x 30″ structural foam basin, 2 piece steel cover, includes check valve |
| 509074 | 9S-SMPXRT-K | Simplex Sewage Package, 4/10 HP sewage pump, 115 V, prepackaged with 18″ x 30″ roll top poly basin, includes check valve, 2″ or 3″ vent, 2″ discharge structural foam cover |
Assembly required
Pre-Assembled Simplex Sewage Pump Package System
| Item | Model | Description |
|---|---|---|
| 509073 | 9S-SMPXRT-K | Simplex Sewage Package, 4/10 HP sewage pump, preassembled, 2″ discharge, 18″ x 30″ roll top poly basin, structural foam single piece cover, includes check valve |
| 509079 | 9S-SMPXRTA-K | Simplex Sewage Package, 4/10 HP sewage pump, preassembled with alarm, 18″ x 30″ roll top poly basin, 2″ or 3″ vent, 2″ discharge, structural foam cover |
| 511064 | 10S-SMPXRT-K | Simplex Sewage Package, Pre-Assembled, 1/2 HP sewage pump, 115 V, w/ hole in basin, 2″ discharge, 2″ or 3″ vent, 18″ x 30″ structural foam basin, 1 piece structural foam cover, includes check valve |
Ready to install
