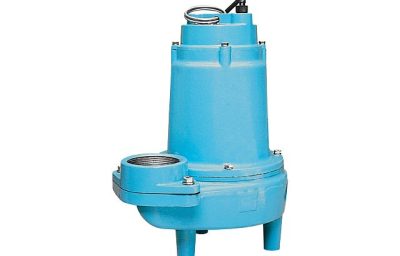

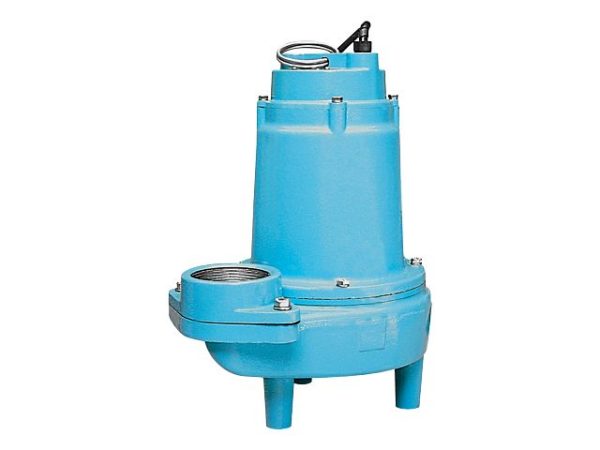

The Little Giant 14 Series sewage pump is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long-term dependability. For use in residential, commercial, industrial, and agricultural applications. Applications include dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic, or drainage areas.
The 14S Series sewage pump is a continuous duty pump featuring epoxy-coated cast iron housings that resist rust and corrosion. Powered by 1/2 horsepower commercial-grade, thermal-protected motors, this submersible solids-handling sewage pump delivers superior performance and years of continuous trouble-free service.
| Capacity | 100 gpm @ 10′ |
| Shut Off | 25′ (7.6 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ FNPT (51 mm) and 3″ FNPT (76.2 mm) models |
| Impeller | Epoxy-coated cast iron |
| Electrical | 115 V, 60 Hz, 11.6 A |
| Operation | Manual |
| Head | GPM (LPM) |
| 10′ | 100 (379) |
| 20′ | 35 (132.5) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 514320 | 14S-CIM | 115 VAC | Manual | 20 ft | 2 “ |
| 514420 | 14S-CIM-3-Inch | 115 VAC | Manual | 20 ft | 3 “ |
