Series Sewage Pump

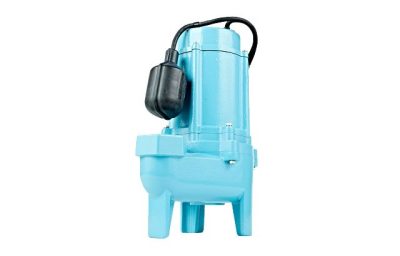

15SC Series Sewage Pump

The Little Giant 15SC Series sewage pump is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long-term dependability. For use in residential and light commercial, industrial, or agricultural applications, the pump’s ¾ horsepower motor is designed for continuous use applications, such as water transfer, dewatering, effluent and sewage handling.

Features & Benefits

  • 3/4 hp Permanent Split Capacitor (PSC) motor
  • 2′ FNPT discharge
  • Thermally protected motor
  • Completely submersible, designed for continuous duty operation
  • Fully automatic with remote float switch and piggy-back plug
  • Cast iron construction
  • Capable of passing 2′ solids

Overview

Get fully automatic sewage handing with the Little Giant 15SC Series sewage pump. A remote float switch and piggy-back plug are engineered to keep wastewater moving, while the powerful ¾ horsepower Permanent Split Capacitor (PSC) motor is thermally protected for reliable, continuous use. Fully submersible and built with a solid cast iron construction for long-term dependability, even in tough applications.

Click to rate this post!
[Total: 0 Average: 0]

Specifications

Capacity 130 gpm @ 5′
Shut Off 28′ (8.5 m)
Max. Liquid Temp. 140 °F (60 °C)
Discharge 2″ FNPT (50.8 mm)
Impeller Nylon
Electrical 115 V, 60 Hz, 8 A, 1200 W
Operation Automatic

Performance

Performance

Head GPM (LPM)
5′ 130 (492.1)
10′ 110 (416.4)
15′ 90 (340.7)
20′ 70 (265)
25′ 40 (151.4)




Order Information

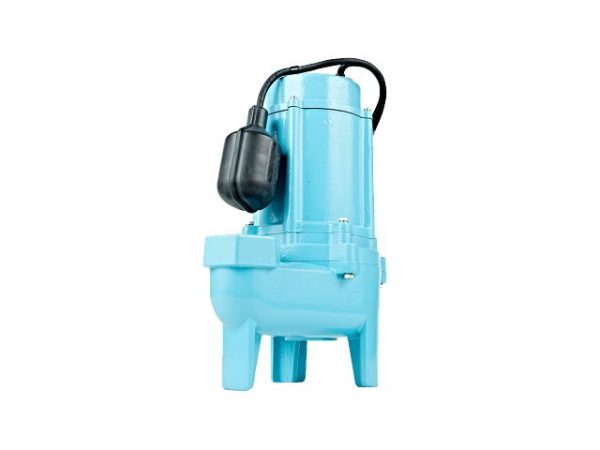

15SC-CIA_RF_Side.psd




15SC Series Sewage Pump

Item Model HP Volts Cord Length Discharge
14942786 15SC-CIA-RF (115V, 20-Ft Cord, Remote Float Switch) 3/4 hp 115 VAC 20 ft 2 “
