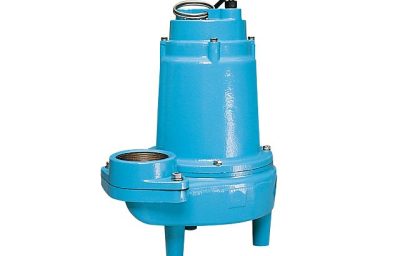

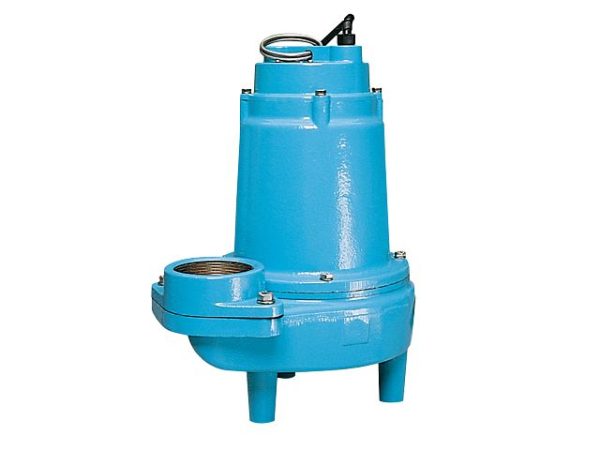

The 16S Series manual sewage pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high- efficiency. Equipped with a robust 1 horsepower motor and non-clog impeller, the 16S is built for dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic or drainage areas.
Engineered for long-term dependability, the 16S Series sewage pump has a powerful 1 horsepower motor consisting of an oil-filled motor housing for lifetime mechanical seal and bearing lubrication and efficient heat dissipation. It includes a mechanical-type seal (stainless steel spring, nitrile parts, carbon, and ceramic faces) with secondary exclusion seal for added strength and durability. The dynamically balanced two-vane non-clog impeller is designed with pump-out vanes to keep solids away from the seal for less seal and bearing wear.
| Capacity | 160 gpm @ 10′ |
| Shut Off | 35′ (10.7 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3″ FNPT (76.2 mm) |
| Impeller | Epoxy-coated cast iron |
| Electrical | 200-208 V, 60 Hz, 6.8 A, Single-Phase 208 V, 60 Hz, 11 A, Single-Phase 230 V, 60 Hz, 11 A, Single-Phase 200-208 V, 60 Hz, 6.3 A, Three-Phase 380-460 V, 50-60 Hz, 3A, Three-Phase |
| Operation | Manual |
| Head | GPM (LPM) |
| 10′ | 160 (605.7) |
| 20′ | 100 (378.5) |
| 30′ | 40 (151.4) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 514625 | 16S-CIM | 200 VAC / 208 VAC | Manual | 20 ft | 3 “ |
| 514630 | 16S-CIM | 230 VAC | Manual | 40 ft | 3 “ |
| 514620 | 16S-CIM | 230 VAC | Manual | 20 ft | 3 “ |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 514750 | 16S-CIM | 200 VAC / 208 VAC | Manual | 20 ft | 3 “ |
| 514730 | 16S-CIM | 380 VAC / 460 VAC | Manual | 20 ft | 3 “ |
