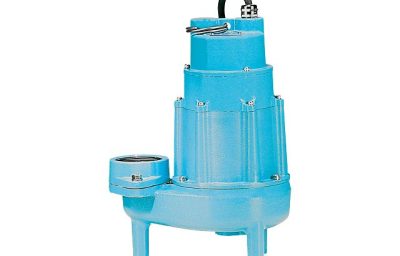

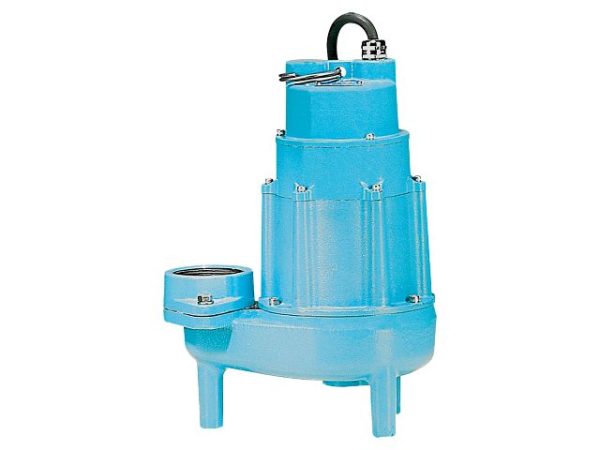

For dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines or drainage areas, the 20S Series sewage pump from Little Giant is an ideal solution. With the ability to handle larger transfer demands, the 20S Series sewage pump delivers high proficiency and unyielding operation to difficult wastewater challenges.
There’s no denying the power packed into the 20S Series sewage pump. Equipped with a robust 2 horsepower motor, upper and lower ball bearings, durable brass impeller, and oil-filled motor housing for lifetime lubrication and rapid heat dissipation, the 20S is built for continuous duty operation in effluent and sewage water transfer applications. Vigorous enough to handle 205 GPM at 10′, the 20S Series holds the elite position when it comes to durability and resilience.
| Capacity | 205 gpm @ 10′ |
| Shut Off | 77′ (23.5 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3″ FNPT (76.2 mm) |
| Impeller | Epoxy-coated cast iron |
| Electrical | 200-208 V, 60 Hz, 14.5 A, Three-Phase 208-230 V, 60 Hz, 18 A, Single-Phase 230 V, 60 Hz, 12.6 A, Three-Phase 460 V, 60 Hz, 6.1 A, Three-Phase |
| Operation | Manual |
| Head | GPM (LPM) |
| 10′ | 205 (776) |
| 20′ | 168 (635.9) |
| 30′ | 140 (530) |
| 40′ | 120 (454.2) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 520100 | 20S-CIM | 208 VAC / 230 VAC | Manual | 20 ft | 3 “ |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 520125 | 20S-CIM | 200 VAC / 208 VAC | Manual | 20 ft | 3 “ |
| 520150 | 20S-CIM | 230 VAC | Manual | 20 ft | 3 “ |
| 520175 | 20S-CIM | 460 VAC | Manual | 20 ft | 3 “ |
