A dependable companion focused on new construction of residential sewage applications but can be also be used for high flow effluent wastewater transfer and dewatering, the BSWC Series handles solids up to 2″ diameter. This series offers easy installation and maintenance-free operation.

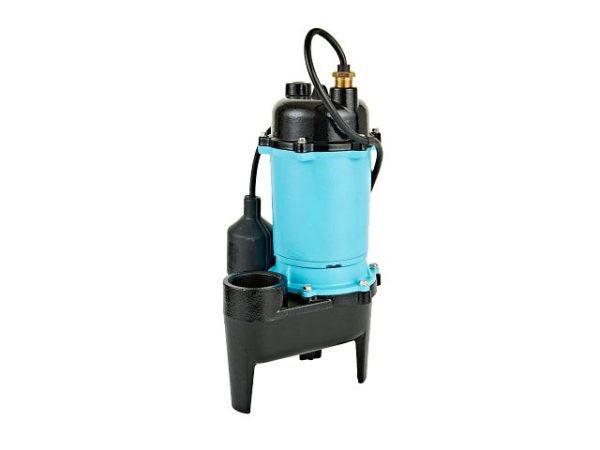

The BSWC50 Series sewage pump is a high performance pump with all cast iron construction for cooling and long life. The powerful 1/2 horsepower PSC motor can operate your residential sewage system or move water quickly from other low lying areas. The simple and effective design is a great option for sewage lift stations in newly built basements.
| Capacity | 82 gpm @ 5′ |
| Shut Off | 22′ (6.7 m) |
| Max. Liquid Temp. | 95 °F (35 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Cast Iron |
| Electrical | 115 V, 60 Hz, 9 A |
| Operation | Automatic |
| Head | GPM (LPM) |
| 5′ | 82 (310) |
| 10′ | 57 (216) |
| 15′ | 28 (106) |
| Item | Model | Volts | Cord Length | Discharge |
|---|---|---|---|---|
| 511256 | 115 VAC | 10 ft | 2 “ | |
| 511257 | 115 VAC | 30 ft | 2 “ |
