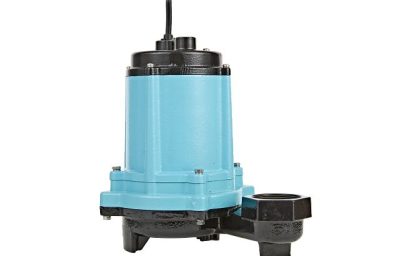

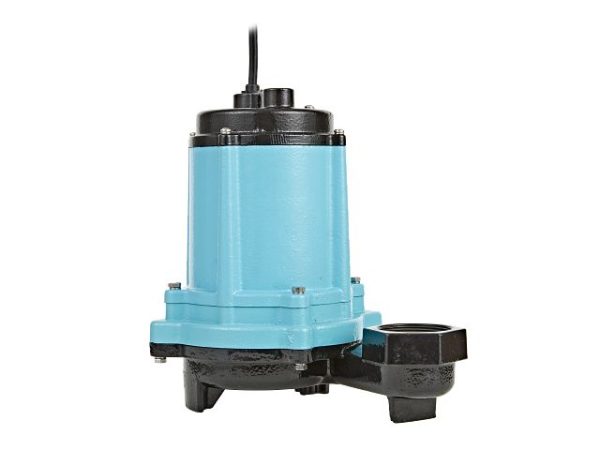

12E Series Effluent Pump
Click to rate this post!
[Total: 0 Average: 0]
When performance and efficiency are paramount, the 12E Series effluent pump’s high-flow cloverleaf intake doesn’t rely on luck. Built for commercial applications, including effluent and septic wastewater removal, the 12E Series effluent pump is perfect for high-head performance in deep vault applications while maintaining high-head flow and clog resistance.
Features & Benefits
- 1/2 hp Permanent Split Capacitor (PSC) motor
- Heavy-duty epoxy-coated cast iron housing
- Designed for continuous duty
- 2″ FNPT discharge (51 mm)
- Piggyback automatic switch option
- 3/4″ solids handling
Overview
Tough enough to tackle the demands of commercial applications, Little Giant’s 12E Series is rated for continuous-duty for long-life usage in dewatering, water transfer, and septic wastewater removal and includes both upper and lower ball bearings for increased longevity. With a 2″ FNPT discharge, the 12E can pump 50 gpm at 5′ and comes with a 20′ power cord.
Specifications
| Capacity | 50 gpm @ 5′ |
| Shut Off | 53′ (16.2 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ FNPT (51 mm) |
| Impeller | Cast iron |
| Electrical | 115 V, 60 Hz, 10 A |
| Operation | Automatic or Manual |
Performance
| Head | GPM (LPM) |
| 5′ | 50 (189) |
| 10′ | 48 (182) |
| 15′ | 46 (174) |
| 20′ | 43.5 (165) |
| 30′ | 33.9 (128) |
| 40′ | 22.5 (85) |
| 50′ | 7.5 (28) |
