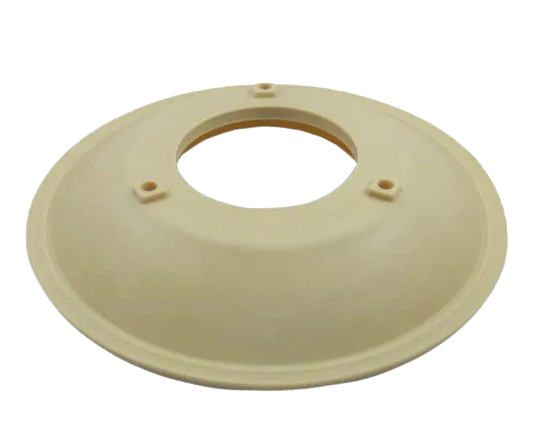

TPE Santoprene Replacement Diaphragms for 2″, 3″ & 4″ Diaphragm Pumps

TPE Santoprene Replacement Diaphragms for 2″, 3″ & 4″ Diaphragm Pumps are the longest-lasting diaphragm material option Ken’s Distributing carries, and they are the correct choice when a pump runs continuously in demanding conditions, when diaphragm failure carries a high cost in downtime, or when the application involves chemical exposure that rubber and neoprene cannot handle reliably. Ken’s Distributing stocks Santoprene diaphragms in sizes compatible with the major diaphragm pump brands used in construction, industrial, municipal, and contracting applications across the U.S. and Canada.

If you are currently running rubber or neoprene diaphragms and replacing them more frequently than your operation can afford, TPE Santoprene is worth evaluating for your application.

Get a Fast Quote from a Pump Specialist

Compatible Pump Brands

Ken’s Distributing carries TPE Santoprene replacement diaphragms for the following pump brands. Click a brand to view Santoprene diaphragms available for that pump.

CH&E Replacement Diaphragm

Magnum Replacement Diaphragm

AMT Replacement Diaphragm

Mud Hog Replacement Diaphragm

Wacker Replacement Diaphragm

Gorman-Rupp Replacement Diaphragm

Multiquip Replacement Diaphragm

Riverside Replacement Diaphragm

Tsurumi Replacement Diaphragm

Compatible brands

CH&E

AMT

Gorman-Rupp

CH&E

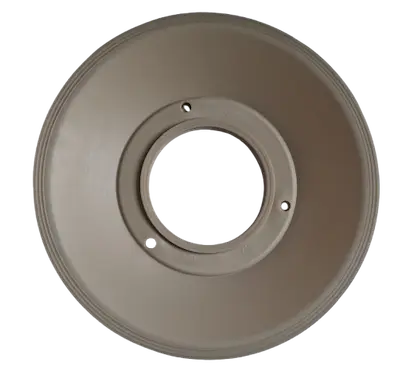

2″ CH&E Replacement Diaphragm – TPE

3″ CH&E Replacement Diaphragm – TPE

AMT

2″ AMT Replacement Diaphragm – TPE (Model 336)

2″ AMT Replacement Diaphragm – TPE (No Holes)

3″ AMT Replacement Diaphragm – TPE (Model 335)

3″ AMT Replacement Diaphragm – TPE (No Holes)

Gorman-Rupp

3″ Gorman-Rupp Replacement Diaphragm – TPE

4″ Gorman-Rupp Replacement Diaphragm – TPE

What TPE and Santoprene Mean

TPE stands for thermoplastic elastomer, which is a class of materials that combines the processing characteristics of thermoplastics with the performance characteristics of vulcanized rubber. Santoprene is a specific brand of thermoplastic vulcanizate, a subtype of TPE, originally developed by Monsanto and now produced by ExxonMobil. In the diaphragm pump industry, Santoprene has become the widely recognized name for this class of diaphragm material, though other TPE compounds with similar performance profiles are also used.

What makes TPE and Santoprene different from rubber and neoprene in practical terms is the combination of properties they deliver together rather than individually. Rubber has excellent flex life but limited chemical and weather resistance. Neoprene improves on weather resistance but still fails in oil and many chemical environments. TPE Santoprene delivers strong flex fatigue resistance, broad chemical compatibility, a wider useful temperature range, and resistance to UV and ozone degradation, all in one material.

That combination is why Santoprene diaphragms carry a higher per-unit cost than rubber or neoprene, and why that cost is typically justified in applications where the alternatives wear out too quickly.

Where TPE Santoprene Diaphragms Perform Best

TPE Santoprene diaphragms are not the right choice for every application. They are the right choice for specific situations where the properties of rubber and neoprene are insufficient. The following are the conditions where Santoprene consistently outperforms the alternatives.

Continuous-duty, high-cycle applications: Pumps that run for extended hours daily put rubber and neoprene diaphragms through significantly more flex cycles than intermittent-use pumps. Santoprene’s fatigue resistance means it maintains structural integrity and sealing performance longer under these conditions.

Applications involving chemical exposure beyond water and slurry: If the fluid being pumped contains detergents, mild acids, mild alkalis, cleaning solutions, or other water-based chemical solutions, rubber and neoprene will degrade faster than Santoprene. Note that chemical compatibility for any specific fluid should always be confirmed before specifying any diaphragm material. Ken’s Distributing can assist with compatibility confirmation.

Environments with significant temperature variation: Santoprene maintains its mechanical properties across a wider temperature range than rubber or neoprene, making it suitable for applications where pump operating temperatures fluctuate significantly or where cold-weather operation causes rubber diaphragms to stiffen and lose sealing performance.

Outdoor storage and operation: Santoprene resists UV degradation and ozone exposure better than natural rubber, which matters for pumps that are stored outdoors between uses or operated in direct sunlight for extended periods.

Operations where diaphragm replacement downtime is costly: If replacing a diaphragm means stopping a production line, a municipal bypass operation, or a critical dewatering operation, specifying the longest-lasting diaphragm material available is a straightforward cost-benefit decision.

Where TPE Santoprene is not necessarily the right choice: If your pump handles clean water or standard construction groundwater without chemical content, and the pump runs intermittently rather than continuously, rubber or neoprene will deliver acceptable service life at a lower cost per diaphragm. The correct material depends on your actual application conditions, not on the assumption that more expensive always means better.

How TPE Santoprene Compares to Other Diaphragm Materials

The table below compares TPE Santoprene against rubber, neoprene, and Buna/nitrile across the performance properties most relevant to diaphragm pump applications.

Property	TPE Santoprene	Neoprene	Rubber	Buna/Nitrile
Flex and Fatigue Life	Excellent	Very Good	Good	Good
Weather and UV Resistance	Excellent	Excellent	Fair	Fair
Oil and Fuel Resistance	Good	Poor	Poor	Excellent
Chemical Resistance	Very Good	Moderate	Low	Good
Clean Water Performance	Excellent	Excellent	Excellent	Good
Temperature Range	Approximately -40°C to 135°C	-20°C to 100°C	-5°C to 80°C	-10°C to 90°C
Relative Cost	Higher	Low to Moderate	Lowest	Moderate
Best For	Continuous duty, chemical exposure, demanding environments	Construction, groundwater, slurry	Clean water, standard dewatering	Oily water, fuel-contaminated fluids

Important note on temperature and chemical claims: The temperature range listed for Santoprene above reflects general published data for thermoplastic vulcanizate compounds. The actual performance range for the specific Santoprene diaphragm you are ordering depends on the compound grade and the fluid being pumped. Always confirm temperature and chemical compatibility for your specific application with Ken’s Distributing before ordering.

For a full overview of all four materials and guidance on selecting the right one for your pump and application, see the main Replacement Diaphragms page.

Available Sizes

TPE Santoprene replacement diaphragms are available for larger diaphragm pump sizes commonly used in construction and industrial applications. The reference dimensions below apply to Santoprene diaphragms for larger pump makes. Always confirm your part number against your pump model before ordering.

TPE Santoprene Diaphragms, Larger Pump Sizes

A	B	C
13 inch	1-3/4 inch	4-7/8 inch
14-3/4 inch	2-1/2 inch	5-1/2 inch

Dimension A is the outer diameter measured across the widest point of the diaphragm lying flat. Dimension B is the thickness at the thickest point. Dimension C is the center plate or bead diameter. For instructions on how to measure your existing diaphragm, see the measurement guide on the main Replacement Diaphragms page.

If you need a Santoprene diaphragm in a size not shown here, contact Ken’s Distributing with your pump model number. Availability beyond the sizes listed above depends on the specific pump brand and model.

Industries and Applications Where Santoprene Diaphragms Are Used

The following applications represent common uses for TPE Santoprene replacement diaphragms in the industries Ken’s Distributing serves. These are situations where the material’s fatigue resistance, chemical compatibility, and temperature range provide a clear advantage over rubber or neoprene.

Industrial fluid transfer in chemical environments: Moving water-based chemical solutions, cleaning agents, mild acids, and mild alkalis in plant and facility environments where rubber and neoprene diaphragms wear out too quickly. Chemical compatibility should always be confirmed for the specific fluid before specifying Santoprene.

Municipal and utility continuous-duty applications: Long-running bypass pumping, dewatering operations, and utility maintenance work where pumps operate for extended hours and diaphragm replacement frequency directly affects operational cost.

Construction dewatering in demanding conditions: High-cycle dewatering operations where pumps run around the clock and the cost of a diaphragm failure mid-operation outweighs the higher per-unit cost of Santoprene over rubber.

Wastewater and contaminated water handling: Applications involving water with chemical content that degrades rubber or neoprene, where Santoprene’s broader chemical resistance provides more reliable service. Confirm fluid compatibility before ordering.

Cold-climate operation: Applications where pump operation in low ambient temperatures causes rubber diaphragms to stiffen and lose sealing performance. Santoprene maintains its flexibility at lower temperatures than natural rubber.

Rental fleet management: Rental companies operating fleets of diaphragm pumps may find that the longer service life of Santoprene diaphragms reduces maintenance frequency and diaphragm replacement costs across the fleet over time, offsetting the higher per-unit cost.

When to Inspect and Replace Your TPE Santoprene Diaphragm

TPE Santoprene diaphragms have a longer service life than rubber or neoprene in appropriate applications, but they still require periodic inspection and eventual replacement. Do not assume that a Santoprene diaphragm is operating correctly simply because it has not failed visibly. Inspect it at regular intervals.

Replace or inspect your Santoprene diaphragm when you observe any of the following.

Fluid appearing at the air exhaust port or in the air chamber, indicating a tear, pinhole, or edge failure in the diaphragm
A reduction in pump flow rate without a corresponding change in operating conditions
Irregular, labored, or inconsistent pump cycling that suggests the diaphragm is not completing its stroke correctly
Visible cracking, surface deterioration, or permanent deformation during a physical inspection
Any pump returning to service after extended storage or idle periods, regardless of diaphragm material

Santoprene diaphragms in active industrial or construction applications can generally be inspected at longer intervals than rubber or neoprene due to their superior fatigue resistance. A reasonable starting point for inspection frequency in continuous-duty applications is every 800 to 1,500 operating hours, though your actual interval should be based on your specific pump, fluid, and operating conditions rather than a generic recommendation.

As with all diaphragm pumps that use two diaphragms, replace both at the same time when one requires replacement. Running a new Santoprene diaphragm alongside a worn one creates pressure imbalance and accelerates wear on the new diaphragm.

Other Diaphragm Materials Available

TPE Santoprene is one of four diaphragm materials Ken’s Distributing carries for diaphragm pumps. If Santoprene is not the right material for your application, or if you are looking for a lower-cost option for a less demanding use, the following alternatives are available.

Rubber Replacement Diaphragms: The most cost-effective option for clean water, standard groundwater removal, and general dewatering where chemical exposure and continuous-duty demands are not factors.

Neoprene Replacement Diaphragms: Better weather and ozone resistance than rubber, well suited for construction dewatering, concrete cutting slurry, and outdoor pump applications without significant chemical or oil exposure.

Buna/Nitrile Replacement Diaphragms: The correct choice for pumping oily wastewater, fuel-contaminated groundwater, and hydrocarbon-containing fluids where neither rubber, neoprene, nor Santoprene would be the first recommendation.

Frequently Asked Questions About TPE Santoprene Replacement Diaphragms

Is Santoprene the same as TPE?

Santoprene is a brand name for a specific thermoplastic vulcanizate compound, which is a type of TPE. In the diaphragm pump industry, the terms are often used interchangeably because Santoprene became the market-leading TPE compound for pump diaphragm applications. Not all TPE diaphragms are Santoprene, but all Santoprene diaphragms are TPE. When ordering, confirm the specific compound with Ken’s Distributing if the brand name matters for your application.

Is a TPE Santoprene diaphragm worth the higher cost compared to rubber or neoprene?

It depends on your application. In continuous-duty, high-cycle, or chemically demanding applications, the longer service life of Santoprene typically results in fewer replacements over time, which can offset the higher per-unit cost. In intermittent-use, clean-water applications, rubber or neoprene will likely deliver acceptable service life at a lower cost. The right answer depends on your operating conditions, not a general preference for one material over another.

What chemicals are TPE Santoprene diaphragms compatible with?

Santoprene has broad compatibility with water-based fluids, mild acids, mild alkalis, cleaning agents, and detergents. It is not universally compatible with all chemicals, and compatibility varies by concentration, temperature, and exposure duration. Always confirm chemical compatibility for your specific fluid with Ken’s Distributing before ordering a Santoprene diaphragm for a chemical transfer application.

Can I replace a rubber or neoprene diaphragm with a Santoprene diaphragm on the same pump?

In most cases, yes, provided the Santoprene diaphragm matches the physical dimensions of the original. Material upgrades are common and do not typically require pump modifications. Ken’s Distributing can confirm whether a Santoprene diaphragm is available in the correct dimensions for your pump model before you order.

Do TPE Santoprene diaphragms work in cold weather?

Yes. Santoprene maintains its flexibility and mechanical properties at lower temperatures than natural rubber, making it a better choice for cold-climate pump operation where rubber diaphragms may stiffen and lose sealing performance. The lower usable temperature limit for Santoprene compounds is generally around -40 degrees C, though the specific compound grade affects this. Confirm cold-temperature performance for your specific diaphragm with Ken’s Distributing if low-temperature operation is a factor.

Do you carry Santoprene diaphragms for 2 inch, 3 inch and 4 inch pumps?

Santoprene diaphragm availability by pump size depends on the specific brand and model. The size reference chart above lists available dimensions for larger pump sizes. Contact Ken’s Distributing with your pump model number to confirm whether a Santoprene diaphragm is available for your specific 2 inch, 3″, or 4″ pump.

Can I order Santoprene diaphragms in bulk for a fleet of pumps?

Yes. Ken’s Distributing offers bulk pricing and blanket order programs for contractors, rental companies, municipalities, and industrial operations managing multiple diaphragm pumps. Contact us with your pump model, diaphragm size, and estimated annual volume for pricing and program details.
