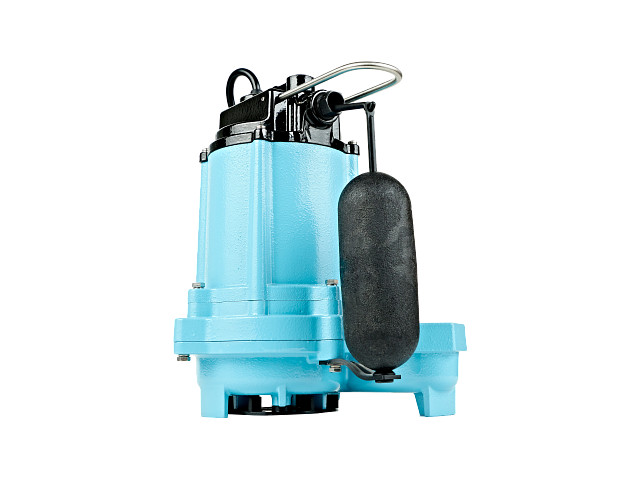

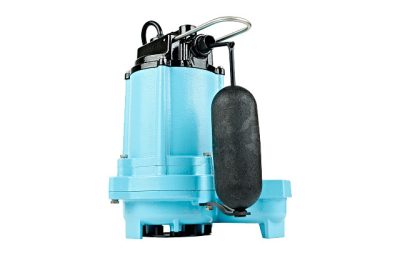

14942784 – 15EC-CIA-SFS (115V, 10-Ft Cord, Integral Snap-Action Switch)
Click to rate this post!
[Total: 0 Average: 0]
| Item: | 14942784 |
| Model: | 15EC-CIA-SFS (115V, 10-Ft Cord, Integral Snap-Action Switch) |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Full Load Watts | 800 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Motor Type | PSC |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 80 gpm / 4800 gph |
| Shut-Off | 28 ft |
| Shut Off Height – 60Hz | 28 ft |
| Max Solid Handling Size | 0.5 “ |
| Switch Type | Integral Snap-Action Float |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Glass-Filled Nylon |
| Discharge Material | Cast Iron |
| Intake Screen Material | Thermoplastic |
| Fasteners Material | Stainless Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Suction Type | Screened |
| Product Length | 10.7 “ |
| Product Width | 8.3 “ |
| Product Height | 11.4 “ |
| Pump Length | 10.7 “ |
| Product Weight | 34.1 lb |
| Product Weight w/ Pack | 36.9 lb |
| Carton Length | 11.6 “ |
| Carton Width | 10.2 “ |
| Carton Height | 14.9 “ |
| Off Level – Range | 3″ – 5″ |
| On Level – Range | 7″ – 10″ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
