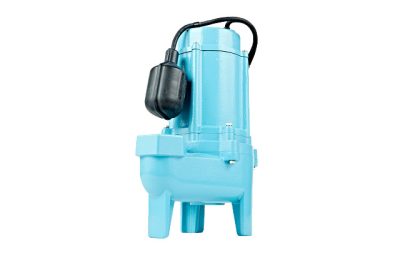

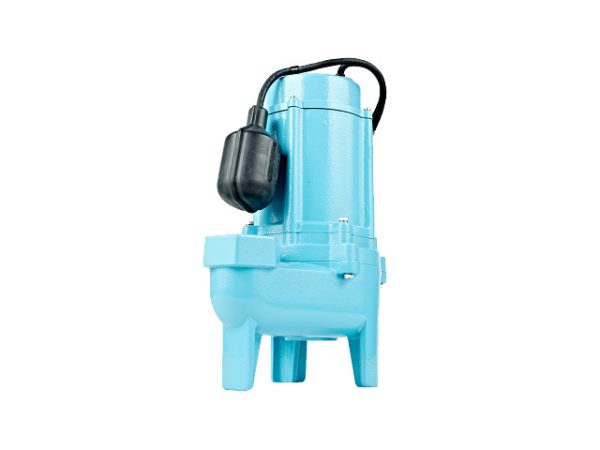

14942786 – 15SC-CIA-RF (115V, 20-Ft Cord, Remote Float Switch)
Click to rate this post!
[Total: 0 Average: 0]
| Item: | 14942786 |
| Model: | 15SC-CIA-RF (115V, 20-Ft Cord, Remote Float Switch) |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Full Load Watts | 1200 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Motor Type | PSC |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 130 gpm / 7800 gph |
| Shut-Off | 28 ft |
| Shut Off Height – 60Hz | 28 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Float / Tethered |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Glass-Filled Nylon |
| Discharge Material | Cast Iron |
| Intake Screen Material | Not Applicable |
| Fasteners Material | Stainless Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 10.4 “ |
| Product Width | 8.6 “ |
| Product Height | 15 “ |
| Pump Length | 10.4 “ |
| Product Weight | 43 lb |
| Product Weight w/ Pack | 46.2 lb |
| Carton Length | 11.9 “ |
| Carton Width | 10.6 “ |
| Carton Height | 18.3 “ |
| Off Level – Range | Adjustable |
| On Level – Range | Adjustable |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
