2E-NDVR Series Acidic Pump

Click to rate this post!

[Total: 0 Average: 0]

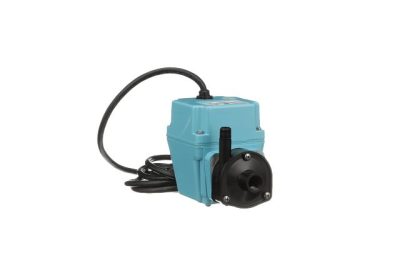

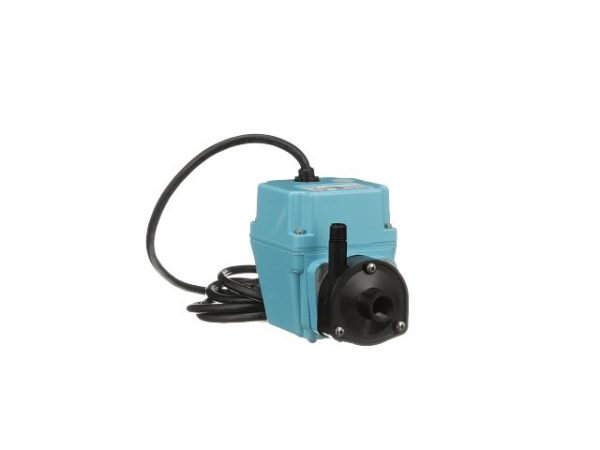

The Little Giant 2E-NDVR Double-Seal Acidic Pump is designed for in-line pumping of weak acids and chemicals, fruit juices, cleaning solvents, anti-freeze, and fluids with a pH factor of 6 or 7. This acidic pump can also be used submerged when pumping water or machine oils. For commercial, industrial or residential use.

Features & Benefits

1/40 hp motor delivers up to 300 gph
11.8′ shutoff
115 V, 1.7 A, 100 W thermally protected motor
6′ power cord
1/4″ MNPT threaded discharge
3/8″ FNPT threaded intake with an adapter to fit 1/2″ I.D. tubing
Handles intermittent liquid temperatures up to 120 °F (49 °C)
Epoxy-coated aluminum housing and cover

Overview

The 2E-NDVR acidic pump consists of an aluminum diecast housing, aluminum seal plate, nylon impeller and volute, stainless steel backplate, and Fluoroelastomer (FKM) gasket. This acidic pump uses a two-seal design. The seals are double-lip radial design type. One is mounted in the aluminum pump housing, the other is in the aluminum seal plate. The exposed motor shaft is made of stainless steel.

Specifications

Capacity	300 gph @ 1′
Shut Off	11.8′ (3.6 m)
Max. Liquid Temp.	120 °F (49 °C)
Discharge	1/4″ MNPT (6 mm)
Impeller	Nylon
Electrical	115 V, 60 Hz, 1.7 A

Performance

Head	GPH (LPH)
1′	300 (1135.6)
3′	255 (965.3)
5′	205 (776)
