503603 – 3E-34N
Click to rate this post!
[Total: 0 Average: 0]

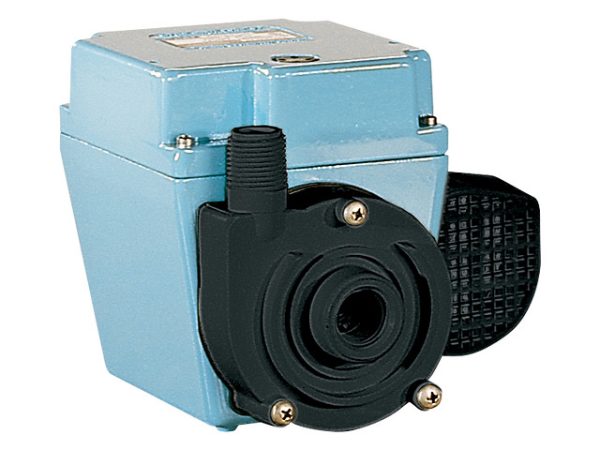

Oil-filled, Direct Drive Submersible Pump, for use submerged or in-line, for water transfer or recirculation. Can also be used for water displays, air conditioners and machine tool coolants.
| Item: | 503603 |
| Model: | 3E-34N |
Ratings |
|
| HP | 1/15 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 3.2 A |
| Full Load Watts | 200 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Maximum Flow Rate – 60Hz | 11 gpm / 660 gph |
| Minimum Flow Rate – 60Hz | 0.67 gpm / 40 gph |
| Shut-Off | 20.3 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 20.3 ft |
| Max PSIG – 60Hz | 8.8 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Discharge Head Material | Thermoplastic |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polypropylene |
| Seal Material | Viton |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 7 “ |
| Product Width | 4.4 “ |
| Product Height | 5.4 “ |
| Pump Length | 7 “ |
| Product Weight | 7.25 lb |
| Product Weight w/ Pack | 7.75 lb |
| Carton Length | 9 “ |
| Carton Width | 6.5 “ |
| Carton Height | 6.5 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
