505055 – WRS-5
Click to rate this post!
[Total: 0 Average: 0]

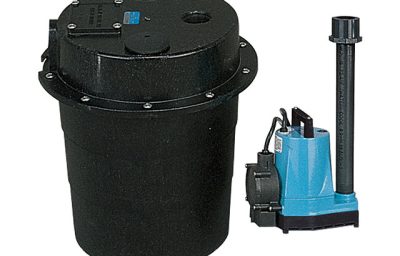

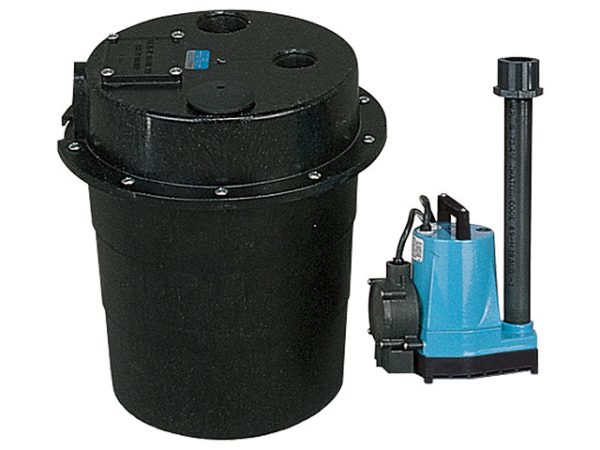

The 1/6 HP, 15 GPM @ 5′ Submersible Utility Pump System includes 5-gallon polypropylene tank and 10′ power cord. Tank lid has 1-1/2″ FNPT (38.1mm) side intake port, 1-1/2″ FNPT (38.1mm) top discharge port, and 2″ FNPT (51mm) top vent port. Easy-to-remove filter trap. Also includes 1/2 HP automatic, 5-ASP submersible sump pump with 10′ (3m) power cord and 3-prong grounded plug; and 1″ (25.4mm) diameter pipe from pump to lid.
| Item: | 505055 |
| Model: | WRS-5 |
Ratings |
|
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 2 A |
| Full Load Watts | 220 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 25 gpm / 1500 gph |
| Rated Flow Rate – 60Hz | 25 gpm / 1500 gph |
| Shut-Off | 26 ft |
| Shut Off Height – 60Hz | 26 ft |
| Max PSIG – 60Hz | 11.4 PSI |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Piggyback Diaphragm |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Nylon |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Bronze |
| Top Bearing Type | Sleeve |
| Seal Material | FKM |
| Seal Type | Lip Seal Ring |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 14.5 “ |
| Product Width | 14.5 “ |
| Product Height | 14.75 “ |
| Pump Length | 9.5 “ |
| Product Weight | 19.1 lb |
| Product Weight w/ Pack | 20.1 lb |
| Carton Length | 14.63 “ |
| Carton Width | 14.63 “ |
| Carton Height | 17 “ |
| Off Level – Range | 1″ – 4″ |
| On Level – Range | 6″ – 9″ |
Other |
|
| Accessories Included | Pre-assembled 5 gallon basin and cover with removable filter, o-rings for watertight seal. |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
