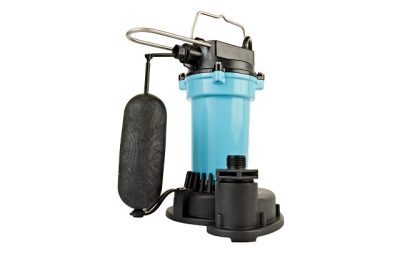

505702 – 5.5-ASPA
Click to rate this post!
[Total: 0 Average: 0]
Little Giant’s 5.5 Series basement sump pump is designed for dewatering applications. Equipped with a PSC 1/4 horsepower motor with thermal motor protection, integral snap-action float switch and screened inlet to handle up to 1/8″ (9.5 mm) solids.
| Item: | 505702 |
| Model: | 5.5-ASPA |
Ratings |
|
| HP | 1/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 3.5 A |
| Amps – Starting | 9 A |
| Full Load Watts | 350 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | No |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 35 gpm / 2100 gph |
| Minimum Flow Rate – 60Hz | 2 gpm / 120 gph |
| Shut-Off | 25 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 25 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.38 “ |
| Switch Type | Integral Snap-Action Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 10 “ |
| Product Width | 8.7 “ |
| Product Height | 10.8 “ |
| Pump Length | 10 “ |
| Product Weight | 10 lb |
| Product Weight w/ Pack | 11.25 lb |
| Carton Length | 9.9 “ |
| Carton Width | 8.1 “ |
| Carton Height | 13 “ |
| Off Level – Range | 2″ – 5″ |
| On Level – Range | 7″ – 10″ |
Other |
|
| Accessories Included | 3/4″ GHT (19mm) garden hose adapter included |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
