505703 – 5.5-ASPA
Click to rate this post!
[Total: 0 Average: 0]

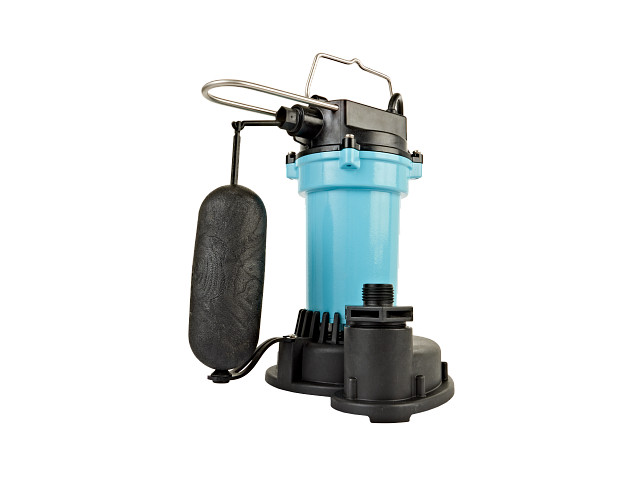

Little Giant’s 5.5-ASPA is a 1/4 HP, 35 GPM submersible sump/utility pump with 25-foot power cord. Includes PSC motor with thermal overload protection, an integral snap-action float switch and 1-1/2″ discharge.
| Item: | 505703 |
| Model: | 5.5-ASPA |
Ratings |
|
| HP | 1/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 3.5 A |
| Amps – Starting | 9 A |
| Full Load Watts | 350 W |
| Volts | 115 VAC |
| Cord Length | 25 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | No |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 35 gpm / 2100 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Integral Snap-Action Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 9 “ |
| Product Width | 11 “ |
| Product Height | 9 “ |
| Pump Length | 9 “ |
| Product Weight | 12 lb |
| Product Weight w/ Pack | 12.5 lb |
| Carton Length | 10 “ |
| Carton Width | 9 “ |
| Carton Height | 13 “ |
| Off Level – Range | 2″ – 5″ |
| On Level – Range | 7″ – 10″ |
Other |
|
| Accessories Included | 3/4″ GHT (19mm) garden hose adapter included |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
