506160 – 6-CIA-ML
Click to rate this post!
[Total: 0 Average: 0]

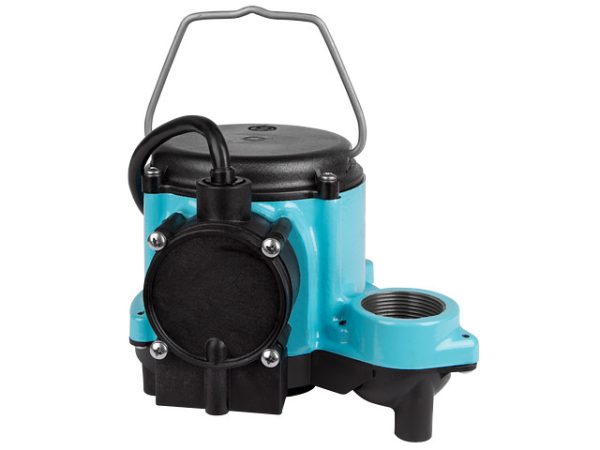

The 6-CIA sump pump is a float-operated submersible pump intended for continuous use for dewatering and water transfer applications in residential and light industrial use.
| Item: | 506160 |
| Model: | 6-CIA-ML |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Full Load Watts | 720 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 46 gpm / 2760 gph |
| Shut-Off | 18 ft |
| Shut Off Height – 60Hz | 18 ft |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Integral Diaphragm |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Nylon |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 9.5 “ |
| Product Width | 7.5 “ |
| Product Height | 6 “ |
| Pump Length | 9.5 “ |
| Product Weight | 17 lb |
| Product Weight w/ Pack | 18 lb |
| Carton Length | 10 “ |
| Carton Width | 10 “ |
| Carton Height | 9 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
