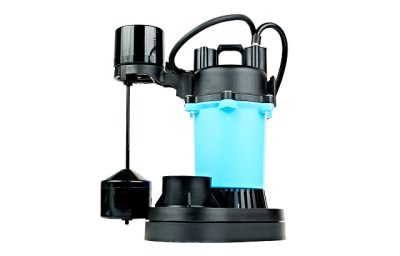

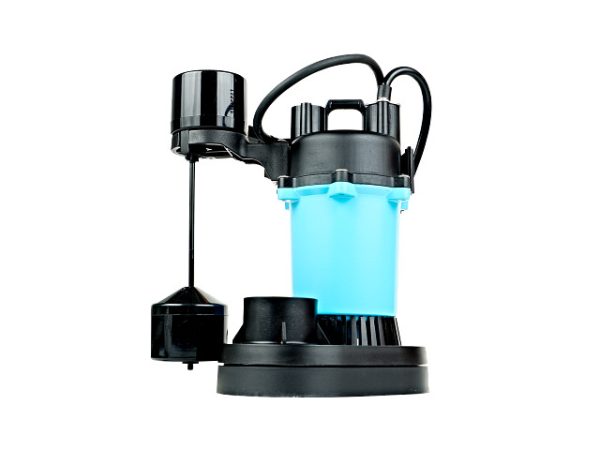

Little Giant 6 Series sump pump with 1/3 hp shaded pole motor with thermal overload protection. Ideal for basement sumps, dewatering and water transfer.
| Item: | 506251 |
| Model: | BSP33V |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 8 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 48 gpm / 2880 gph |
| Rated Flow Rate – 60Hz | 48 gpm / 2880 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Vertical |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Impeller Type | Vortex |
| Impeller Material | Thermoplastic |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Nylon |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Suction Type | Screened |
| Pump Length | 11 “ |
| Product Weight | 8.6 lb |
| Product Weight w/ Pack | 10.1 lb |
| Carton Length | 9 “ |
| Carton Width | 9.5 “ |
| Carton Height | 13.25 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 24 Months |
