506254 – BSC33V
Click to rate this post!
[Total: 0 Average: 0]

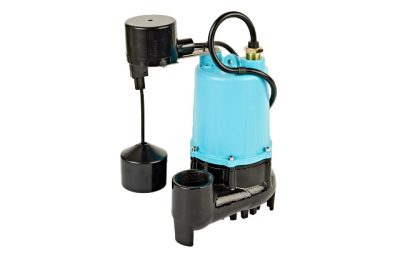

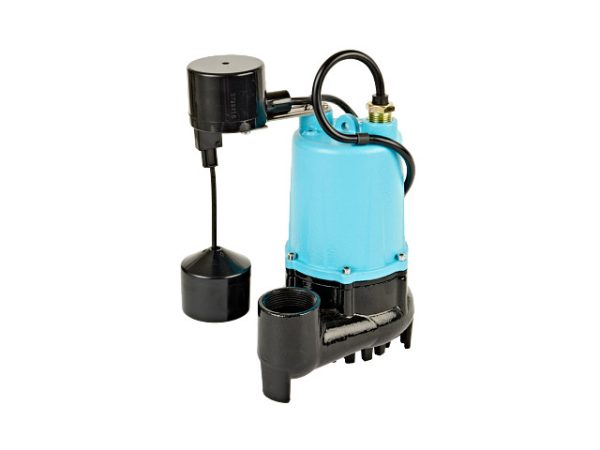

Automatic submersible sump/effluent pump with 1/3 hp heavy-duty cast iron construction, clog-resistant design for 3/8″ solids handling.
| Item: | 506254 |
| Model: | BSC33V |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 50 gpm / 3000 gph |
| Rated Flow Rate – 60Hz | 50 gpm / 3000 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 0.38 “ |
| Switch Type | Vertical |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Pump Length | 12 “ |
| Product Weight | 18.95 lb |
| Product Weight w/ Pack | 20.45 lb |
| Carton Length | 7 “ |
| Carton Width | 9.25 “ |
| Carton Height | 13 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 24 Months |
