506255 – BSC33T
Click to rate this post!
[Total: 0 Average: 0]

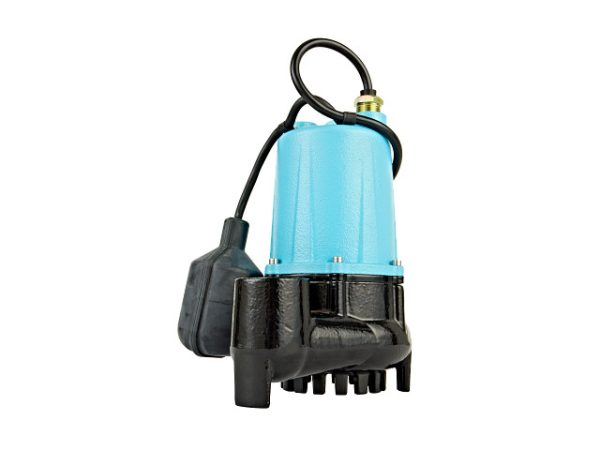

sump pump, 115 V, 10′ cord, automatic operation
| Item: | 506255 |
| Model: | BSC33T |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 50 gpm / 3000 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 0.38 “ |
| Switch Type | Tethered |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Discharge Material | Cast Iron |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 9 “ |
| Product Width | 5 “ |
| Product Height | 12 “ |
| Pump Length | 12 “ |
| Product Weight w/ Pack | 19.55 lb |
| Carton Length | 9 “ |
| Carton Width | 7.5 “ |
| Carton Height | 12.75 “ |
| Off Level – Range | Adjustable |
| On Level – Range | Adjustable |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 24 Months |
