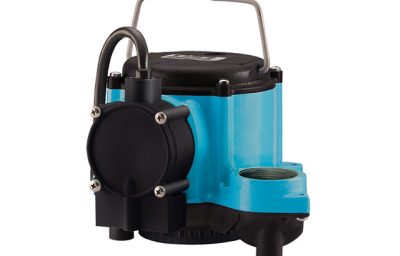

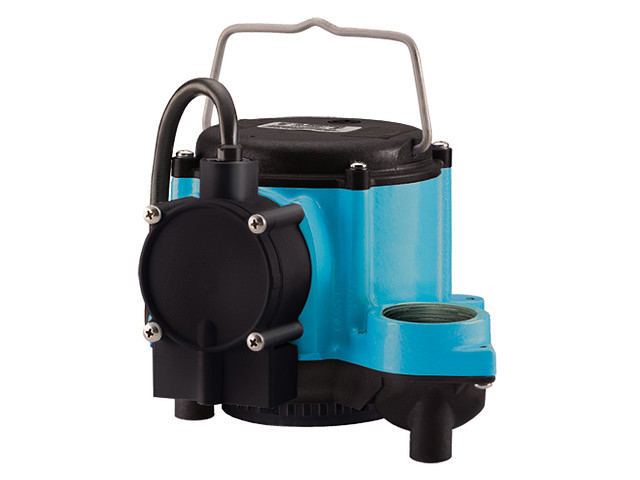

The Little Giant 6 Series is a basement sump pump used for water transfer and dewatering and comes with a standard 3-year warranty. The 6-CIA-RS features 1/3 HP, 45 GPM, remote diaphragm switch and 10 -foot power cord.
| Item: | 506267 |
| Model: | 6-CIA-RS |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
The Little Giant 6 Series is a basement sump pump used for water transfer and dewatering and comes with a standard 3-year warranty. The 6-CIA-RS features 1/3 HP, 45 GPM, remote diaphragm switch and 10 -foot power cord.
| Item: | 506267 |
| Model: | 6-CIA-RS |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 50Hz/60Hz |
| Phase | Single-Phase |
| Amps – Full Load | 9 A |
| Amps – Starting | 14.3 A |
| Full Load Watts | 720 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 16-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Protection [IP] | IP68 |
| Maximum Flow Rate – 60Hz | 46 gpm / 2760 gph |
| Max Flow Rate – 50Hz | 40 gpm / 2400 gph |
| Shut-Off | 18 ft |
| Shut Off Height – 50Hz | 13 ft |
| Shut Off Height – 60Hz | 18 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Piggyback Diaphragm |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Bronze |
| Top Bearing Type | Sleeve |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.63 “ |
| Product Width | 7 “ |
| Product Height | 7.11 “ |
| Pump Length | 8.63 “ |
| Product Weight | 16.5 lb |
| Product Weight w/ Pack | 17.5 lb |
| Carton Length | 10 “ |
| Carton Width | 10 “ |
| Carton Height | 9 “ |
| Off Level – Range | 1″ – 4″ |
| On Level – Range | 7″ – 10″ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
