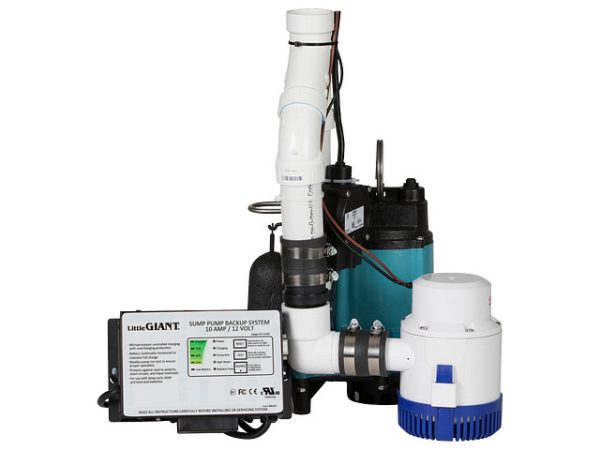

506410 – SPBS-12HF-10
Click to rate this post!
[Total: 0 Average: 0]
All-in-one, pre-assembled primary sump pump and battery backup package system that allows a user to install a Little Giant 10EC 1/2 HP sump pump with the backup system which includes the 12 amp battery charger, 3360 GPH 12 volt backup pump, diaphragm switch and pipe fittings.
| Item: | 506410 |
| Model: | SPBS-12HF-10 |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Lead Length | 10 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 67 gpm / 4020 gph |
| Shut-Off | 36 ft |
| Shut Off Height – 60Hz | 36 ft |
| Max Solid Handling Size | 0.5 “ |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Intake Screen Material | Nylon |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Pump Length | 10.66 “ |
| Product Weight w/ Pack | 53 lb |
| Carton Length | 23.31 “ |
| Carton Width | 17.31 “ |
| Carton Height | 20.13 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | UL |
| Standard Warranty | 36 Months |
