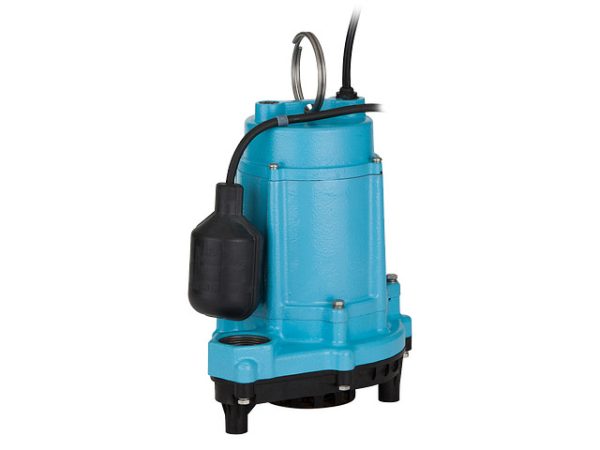

1/3 horsepower, automatic submersible cast iron sump pump with piggyback tethered float for continuous duty rated for sump & light effluent applications. Equipped with a 20′ cord and 1/3 HP PSC Motor w/ Thermal Overload Protection, it pumps an impressive 3180 gallons per hour (GPH).
| Item: | 506858 |
| Model: | 6EC-CIA-RF |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 5 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 600 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 53 gpm / 3180 gph |
| Minimum Flow Rate – 60Hz | 2 gpm / 120 gph |
| Shut-Off | 28 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 28 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.5 “ |
| Switch Type | Piggyback Mechanical Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.79 “ |
| Product Width | 8.48 “ |
| Product Height | 10.9 “ |
| Pump Length | 8.79 “ |
| Product Weight | 35.5 lb |
| Product Weight w/ Pack | 27.74 lb |
| Carton Length | 11 “ |
| Carton Width | 9.5 “ |
| Carton Height | 13 “ |
| Off Level – Range | 6″ – 8″ |
| On Level – Range | 13″ – 15″ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
