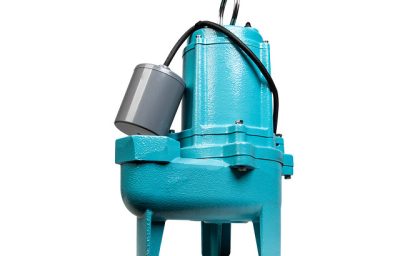

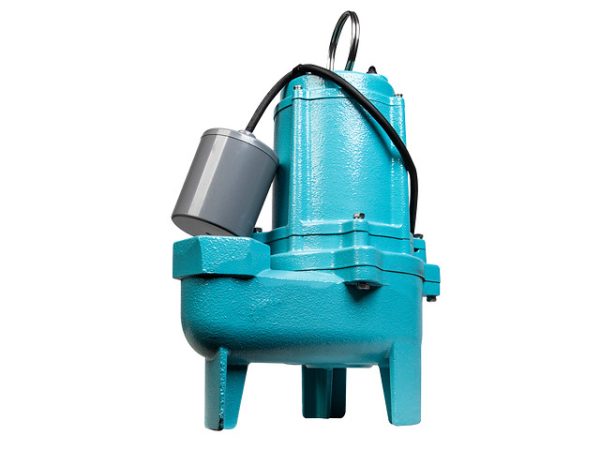

The 9SC-CIA-RF pump effectively tackles sewage wastewater transfer and dewatering applications.
| Item: | 509412 |
| Model: | 9SC-CIA-RF |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
The 9SC-CIA-RF pump effectively tackles sewage wastewater transfer and dewatering applications.
| Item: | 509412 |
| Model: | 9SC-CIA-RF |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 8 A |
| Amps – Starting | 18.5 A |
| Full Load Watts | 870 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 100 gpm / 6000 gph |
| Shut-Off | 20 ft |
| Shut Off Height – 60Hz | 20 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Piggyback Mechanical Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 10.4 “ |
| Product Width | 8.6 “ |
| Product Height | 13.6 “ |
| Pump Length | 10.4 “ |
| Product Weight | 38.5 lb |
| Product Weight w/ Pack | 40 lb |
| Carton Length | 10.24 “ |
| Carton Width | 11.61 “ |
| Carton Height | 17.44 “ |
| Off Level – Range | 9″ – 11″ |
| On Level – Range | 16″ – 19″ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
