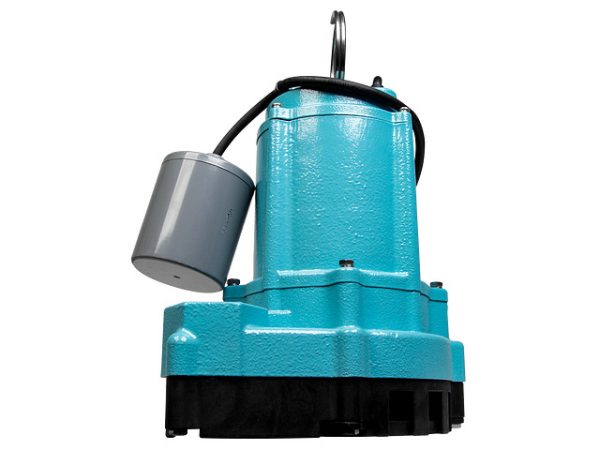

4/10 hp effluent pump, 115V, 20′ cord, automatic tethered float switch operation, 1-1/2″ discharge
| Item: | 509531 |
| Model: | 9ECH-CIA-RF |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
4/10 hp effluent pump, 115V, 20′ cord, automatic tethered float switch operation, 1-1/2″ discharge
| Item: | 509531 |
| Model: | 9ECH-CIA-RF |
Ratings |
|
| Frequency | 50 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 7 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 830 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 70 gpm / 4200 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Shut-Off | 45 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 45 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Piggyback Mechanical Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Thermoplastic Elastomer |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Cast Iron Epoxi |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 10.4 “ |
| Product Width | 8.4 “ |
| Product Height | 10.9 “ |
| Pump Length | 8.9 “ |
| Product Weight | 36 lb |
| Product Weight w/ Pack | 38 lb |
| Carton Length | 11.42 “ |
| Carton Width | 9.84 “ |
| Carton Height | 13.78 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
