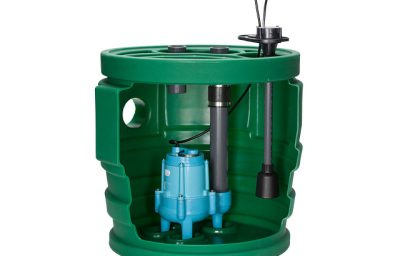

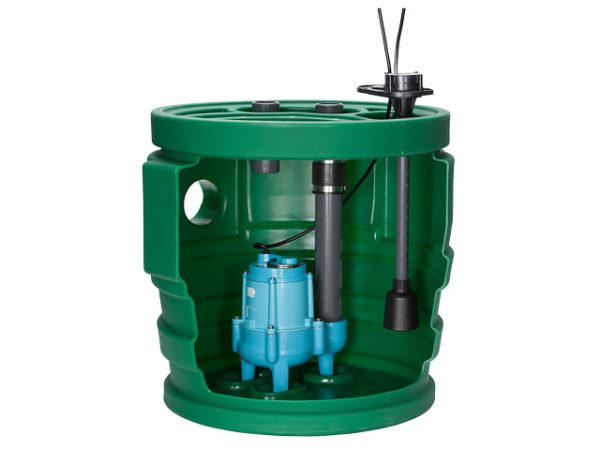

The redesigned Pit+Plus basin features a separate pump and switch access cover while incorporating molded-in discharge and vent ports for simplified service and installation. This allows access to the pump and/or switch independently without disruption to the plumbing connections.
| Item: | 509687 |
| Model: | 9JP2V2D |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 8 A |
| Amps – Starting | 20.15 A |
| Full Load Watts | 870 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 100 gpm / 6000 gph |
| Shut-Off | 20 ft |
| Shut Off Height – 60Hz | 20 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | ECM |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 24 “ |
| Product Width | 24 “ |
| Product Height | 26.54 “ |
| Pump Length | 10.4 “ |
| Product Weight | 67 lb |
| Product Weight w/ Pack | 67 lb |
| Carton Length | 29 “ |
| Carton Width | 26 “ |
| Carton Height | 27 “ |
| Off Level – Range | 2″ – 4″ |
| On Level – Range | 10.25″ – 12.25″ |
Other |
|
| Accessories Included | Pre-Assembled: 24″x24″ Polyethylene Basin with stub out intake, 1-Piece Structural Foam Bolt-on Cover, 2″ discharge, 2″ vent, with 9SC-CIM Sewage Pump (Item 509413) 115V 4/10HP, piggyback ECM switch and includes finish cover. |
| Minimum Order Quantity | 1 |
| Pump Component Part Number | 509413 |
| Standard Warranty | 36 Months |
