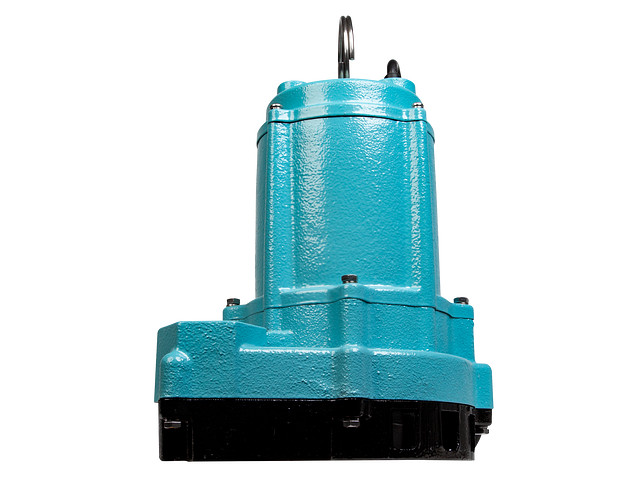

At the core of Little Giant’s effluent pumps product line-up, the 9EC Series is giant on performance and reliability. Ideal for residential applications such as wastewater removal, dewatering and water transfer.
| Item: | 509806 |
| Model: | 9EC-CIM |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
At the core of Little Giant’s effluent pumps product line-up, the 9EC Series is giant on performance and reliability. Ideal for residential applications such as wastewater removal, dewatering and water transfer.
| Item: | 509806 |
| Model: | 9EC-CIM |
Ratings |
|
| Frequency | 50 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 7.5 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 800 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 70 gpm / 4200 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Rated Flow Rate – 60Hz | 22 gpm / 1320 gph |
| Shut-Off | 37 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 37 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Thermoplastic Elastomer |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Check Valve | No |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.9 “ |
| Product Width | 8.4 “ |
| Product Height | 11 “ |
| Pump Length | 8.9 “ |
| Product Weight | 27.5 lb |
| Product Weight w/ Pack | 31 lb |
| Carton Length | 11.42 “ |
| Carton Width | 9.41 “ |
| Carton Height | 13.78 “ |
Other |
|
| Accessories Included | None |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
