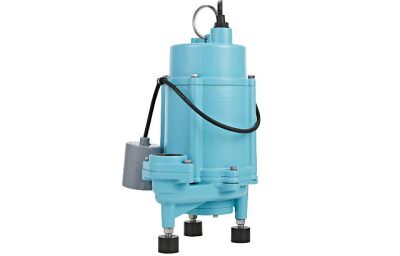

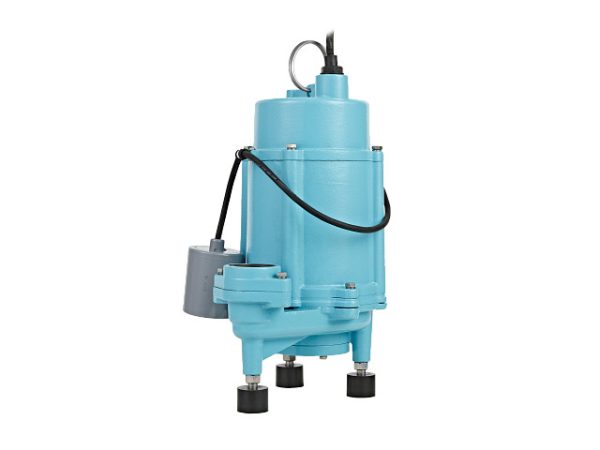

509810 – 16G-F151-20
Click to rate this post!
[Total: 0 Average: 0]
The 16G Series 1 hp Grinder Pump is designed for the toughest residential and light commercial wastewater applications as a new or drop-in replacement for any effluent or sewage pump struggling with clogs and binding wastewater applications.
| Item: | 509810 |
| Model: | 16G-F151-20 |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 12.5 A |
| Amps – Starting | 65 A |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 52 gpm / 3120 gph |
| Minimum Flow Rate – 60Hz | 9 gpm / 540 gph |
| Shut-Off | 51 ft |
| Minimum Head – 60Hz | 0 ft |
| Shut Off Height – 60Hz | 53 ft |
| Motor Cooling | Fully Submerged |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Seal Material | Silicon Carbide / Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 11.4 “ |
| Product Width | 10.1 “ |
| Product Height | 17.5 “ |
| Pump Length | 11.4 “ |
| Product Weight | 78 lb |
| Product Weight w/ Pack | 82 lb |
| Carton Length | 13.5 “ |
| Carton Width | 12.4 “ |
| Carton Height | 19.6 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cULus |
| Standard Warranty | 36 Months |
