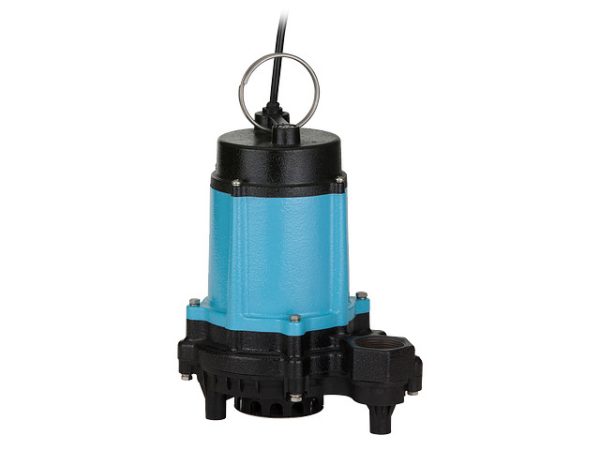

Little Giant 10EC Series Sump/Effluent Pumps are rated for continuous duty use in dewatering and light effluent applications. This model features heavy duty cast iron construction with nylon impeller, a 1/2 hp permanent split capacitor (PSC) motor with a maximum 67 GPH and 10′ cord.
| Item: | 510801 |
| Model: | 10EC-CIM |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 6.5 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 750 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Protection [IP] | IP68 |
| Maximum Flow Rate – 60Hz | 67 gpm / 4020 gph |
| Minimum Flow Rate – 60Hz | 10 gpm / 600 gph |
| Shut-Off | 36 ft |
| Minimum Head – 60Hz | 4.92 ft |
| Shut Off Height – 60Hz | 36 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.5 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.79 “ |
| Product Width | 8.48 “ |
| Product Height | 11.08 “ |
| Pump Length | 8.79 “ |
| Product Weight | 26.95 lb |
| Product Weight w/ Pack | 27.95 lb |
| Carton Length | 11.5 “ |
| Carton Width | 10 “ |
| Carton Height | 13 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
