511252 – BSC50V
Click to rate this post!
[Total: 0 Average: 0]

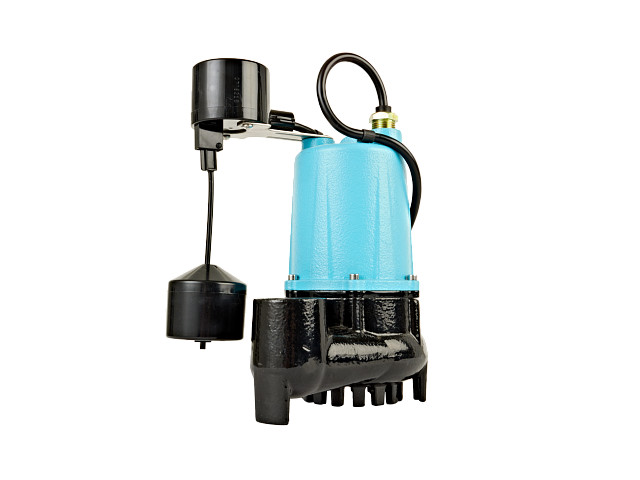

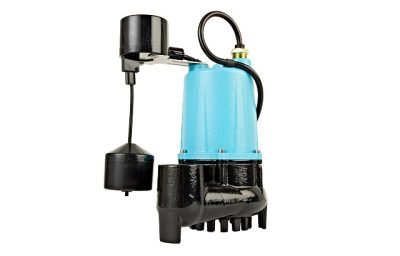

Automatic submersible sump/effluent pump, 1/2 hp heavy-duty cast iron construction, clog-resistant design, 3/8″ solids handling, Vertical float switch for automatic operation, black
| Item: | 511252 |
| Model: | BSC50V |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 49 gpm / 2940 gph |
| Shut-Off | 28 ft |
| Max Solid Handling Size | 0.38 “ |
| Switch Type | Vertical |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Pump Length | 8 “ |
| Product Weight | 19 lb |
| Product Weight w/ Pack | 20 lb |
| Carton Length | 8.7 “ |
| Carton Width | 6.9 “ |
| Carton Height | 12.76 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 24 Months |
