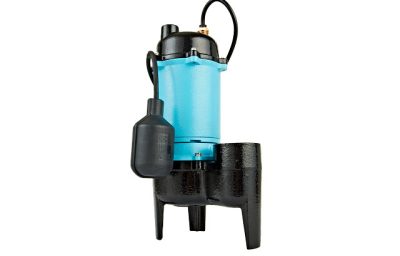

1/2 hp sewage pump, 115V, 10′ cord, automatic operation, mechanical float switch
| Item: | 511256 |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 80 gpm / 4800 gph |
| Max Flow Rate – 50Hz | 0 gpm / 0 gph |
| Shut-Off | 22 ft |
| Shut Off Height – 60Hz | 22 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Tethered |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Pump Length | 7.5 “ |
| Product Weight | 32.45 lb |
| Product Weight w/ Pack | 33.45 lb |
| Carton Length | 8.63 “ |
| Carton Width | 8.88 “ |
| Carton Height | 19.5 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 24 Months |
