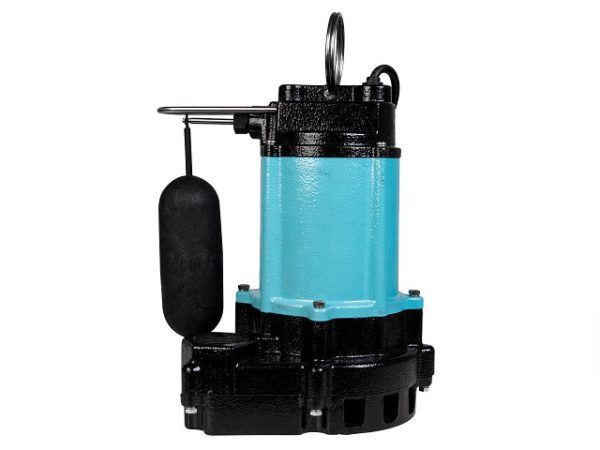

511624 – 10ECH-CIA-SFS
Click to rate this post!
[Total: 0 Average: 0]
Automatic 1/2 hp Sump Effluent Pump with Float Switch includes a 30-foot cord. Designed For High Head Applications Capable of delivering heads up to 60-feet Automatic Submersible Cast Iron Sump Pump Continuous duty rated for sump & light effluent applications
| Item: | 511624 |
| Model: | 10ECH-CIA-SFS |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 9 A |
| Amps – Starting | 22 A |
| Full Load Watts | 1030 W |
| Volts | 115 VAC |
| Cord Length | 30 ft |
| Pump Power Cord Type | SJTW |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 60 gpm / 3600 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Rated Flow Rate – 60Hz | 60 gpm / 3600 gph |
| Shut-Off | 60 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 60 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Integral Snap-Action Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Semi-open |
| Impeller Material | Thermoplastic |
| Motor Shaft End – Material | Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 10.7 “ |
| Product Width | 8.4 “ |
| Product Height | 11.31 “ |
| Pump Length | 10.7 “ |
| Product Weight | 38 lb |
| Product Weight w/ Pack | 39 lb |
| Carton Length | 11.41 “ |
| Carton Width | 9.84 “ |
| Carton Height | 13.78 “ |
| Off Level – Range | 3″ – 6″ |
| On Level – Range | 8″ – 11″ |
Other |
|
| Accessories Included | None |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
