511662 – 10SF2V2DA1
Click to rate this post!
[Total: 0 Average: 0]

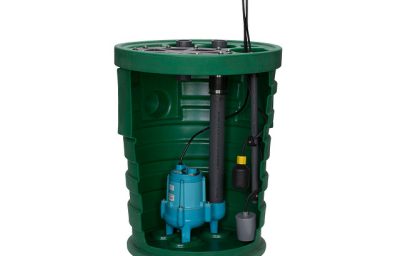

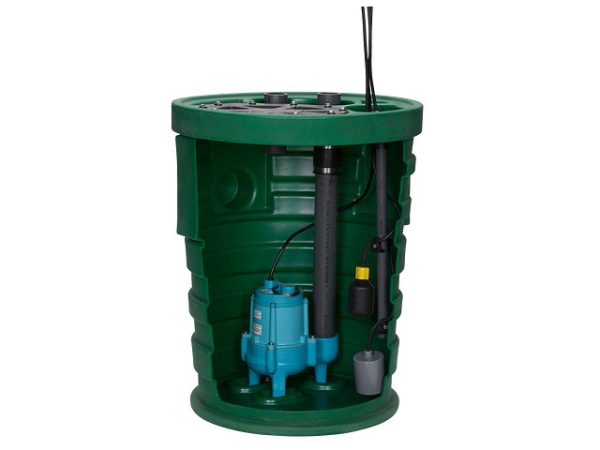

1/2 HP Premium package for the collection of sewage, effluent, drainage or seepage water.
| Item: | 511662 |
| Model: | 10SF2V2DA1 |
Ratings |
|
| Frequency | 50 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 11 A |
| Amps – Starting | 28 A |
| Full Load Watts | 1230 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 16-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 120 gpm / 7200 gph |
| Minimum Flow Rate – 60Hz | 4 gpm / 240 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Cast Iron |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 24 “ |
| Product Width | 24 “ |
| Product Height | 32.56 “ |
| Pump Length | 10.4 “ |
| Product Weight | 67 lb |
| Product Weight w/ Pack | 67 lb |
| Carton Length | 26 “ |
| Carton Width | 26 “ |
| Carton Height | 35 “ |
| Off Level – Range | 2″ – 6″ |
| On Level – Range | 9″ – 14″ |
Other |
|
| Accessories Included | Pre-Assembled: 20″x30″ Polyethylene Basin with stub out intake, 1-Piece Structural Foam Bolt-on Cover, 2″ discharge, 2″ vent, with 10SC-CIM Sewage Pump (Item 511432) 115V 1/2HP, piggyback mechanical float switch, includes indoor alarm and float tree and includes finish cover. |
| Minimum Order Quantity | 1 |
| Pump Component Part Number | 511432 |
| Standard Warranty | 36 Months |
