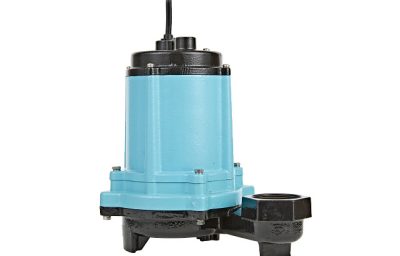

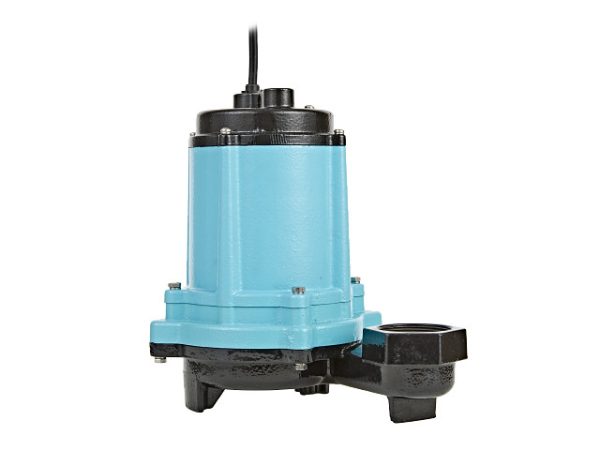

512001 – 12E-CIM
Click to rate this post!
[Total: 0 Average: 0]
3/4″ solids handling, 1/2 hp effluent pump, 115V, 20′ cord, 60HZ, 2″ discharge, manual operation
| Item: | 512001 |
| Model: | 12E-CIM |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 10 A |
| Amps – Starting | 18 A |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 50 gpm / 3000 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Shut-Off | 50 ft |
| Minimum Head – 60Hz | 6 ft |
| Shut Off Height – 60Hz | 53 ft |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Semi-open |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Not Applicable |
| Fasteners Material | Stainless Steel |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 10.6 “ |
| Product Width | 8.8 “ |
| Product Height | 10.5 “ |
| Product Weight w/ Pack | 36.4 lb |
| Carton Length | 11.42 “ |
| Carton Width | 9.45 “ |
| Carton Height | 14.17 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
