518020 – 1-EAYS
Click to rate this post!
[Total: 0 Average: 0]

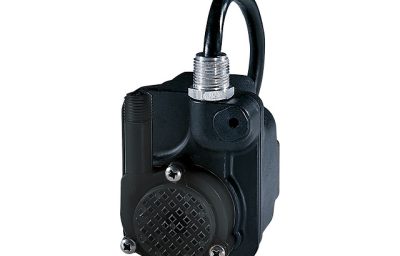

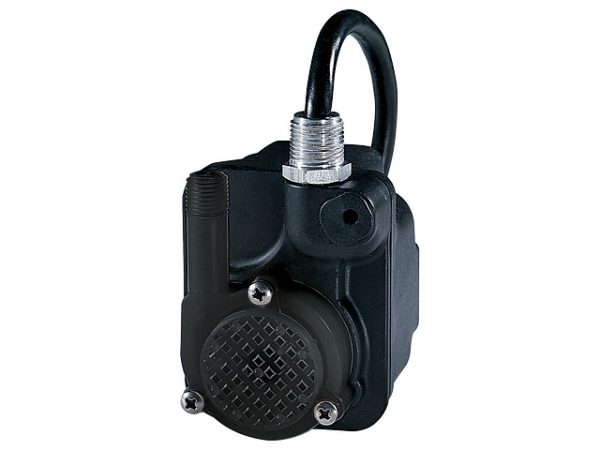

Little Giant’s 1-EAYS – 2.8 GPM 1/125 HP Submersible Parts Washer Pump w/o Plug is developed for unheated metal parts cleaning solvents. The 1/125 HP Epoxy Encapsulated Direct Drive Motor is designed for continuous duty, submersible use.
| Item: | 518020 |
| Model: | 1-EAYS |
Ratings |
|
| HP | 1/125 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.6 A |
| Full Load Watts | 100 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Minimum Flow Rate – 60Hz | 0.17 gpm / 10 gph |
| Shut-Off | 7 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 7 ft |
| Max PSIG – 60Hz | 3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Aluminum |
| Discharge Head Material | Thermoplastic |
| Intake Screen Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 3.2 “ |
| Product Width | 2.8 “ |
| Product Height | 4.2 “ |
| Product Weight | 2.8 lb |
| Product Weight w/ Pack | 2.83 lb |
| Carton Length | 6.13 “ |
| Carton Width | 6.13 “ |
| Carton Height | 4.13 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 12 Months |
