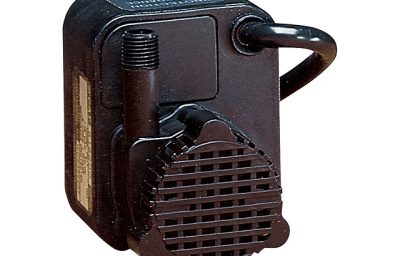

The PE-1 Series is an epoxy encapsulated, direct drive small submersible pump for water transfer or recirculation, and water displays. Includes 115 volts, 6′ power cord and 170 gph.
| Item: | 518200 |
| Model: | PE-1 |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist

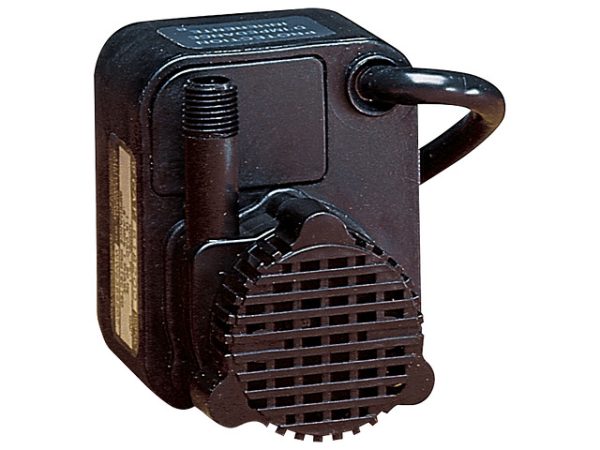

The PE-1 Series is an epoxy encapsulated, direct drive small submersible pump for water transfer or recirculation, and water displays. Includes 115 volts, 6′ power cord and 170 gph.
| Item: | 518200 |
| Model: | PE-1 |
Ratings |
|
| HP | 1/125 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.6 A |
| Full Load Watts | 36 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Minimum Flow Rate – 60Hz | 0.17 gpm / 10 gph |
| Shut-Off | 7 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 7 ft |
| Max PSIG – 60Hz | 3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Intake Screen Material | Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 3.5 “ |
| Product Width | 2.8 “ |
| Product Height | 3.6 “ |
| Pump Length | 3.5 “ |
| Product Weight | 2.5 lb |
| Product Weight w/ Pack | 3 lb |
| Carton Length | 6.19 “ |
| Carton Width | 6.19 “ |
| Carton Height | 4.19 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
