518400 – PE-2H
Click to rate this post!
[Total: 0 Average: 0]

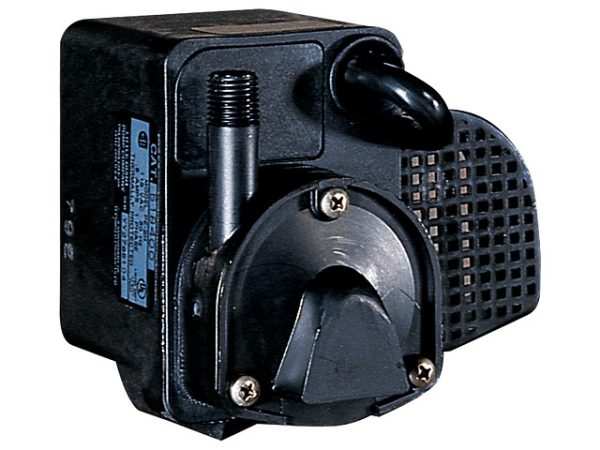

This compact 300-GPH poxy encapulated pump features 1/4″ MNPT discharge, 7′ shut-off head capability, screened inlet, and 6′ power cord.
| Item: | 518400 |
| Model: | PE-2H |
Ratings |
|
| HP | 1/40 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.8 A |
| Full Load Watts | 47 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Minimum Flow Rate – 60Hz | 0.17 gpm / 10 gph |
| Shut-Off | 12.2 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 12.2 ft |
| Max PSIG – 60Hz | 5.3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Intake Screen Material | Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 4.83 “ |
| Product Width | 2.75 “ |
| Product Height | 4.15 “ |
| Pump Length | 4.83 “ |
| Product Weight | 3.67 lb |
| Product Weight w/ Pack | 4.17 lb |
| Carton Length | 6.63 “ |
| Carton Width | 5.88 “ |
| Carton Height | 4.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
