518550 – PE-2YSA (115V)
Click to rate this post!
[Total: 0 Average: 0]

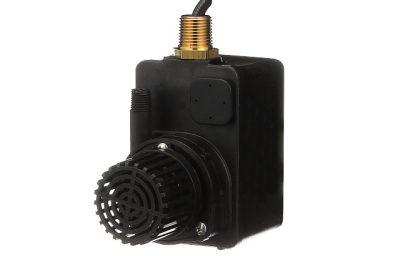

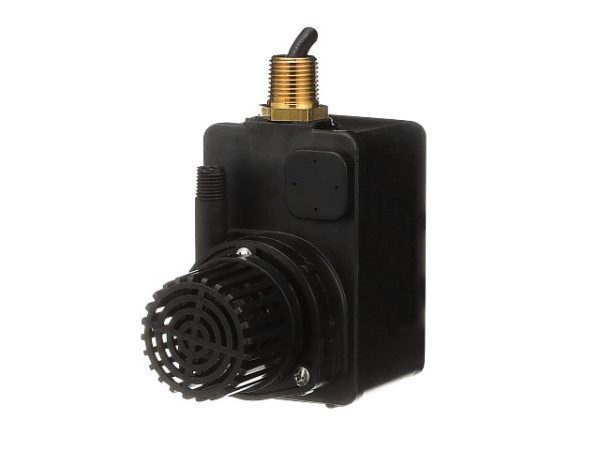

Submersible Parts Washer Pump 1/40 horsepower, 115 VAC, 300 GPH with 1/4-Inch MNPT discharge and 1/2-Inch MNPT Master Builders conduit fitting. Thermal protection and equipped with a 6-foot cord.
| Item: | 518550 |
| Model: | PE-2YSA (115V) |
Ratings |
|
| HP | 1/40 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.8 A |
| Full Load Watts | 47 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Minimum Flow Rate – 60Hz | 0.2 gpm / 12 gph |
| Shut-Off | 12.2 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 12.3 ft |
| Max PSIG – 60Hz | 5.3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Intake Screen Material | Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 5.4 “ |
| Product Width | 2.9 “ |
| Product Height | 5.55 “ |
| Pump Length | 5.4 “ |
| Product Weight | 4.2 lb |
| Product Weight w/ Pack | 4.7 lb |
| Carton Length | 6.19 “ |
| Carton Width | 6.19 “ |
| Carton Height | 4.22 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
