520125 – 20S-CIM
Click to rate this post!
[Total: 0 Average: 0]

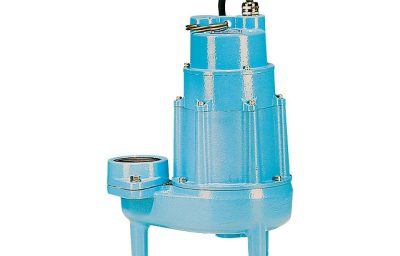

Engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability, 2 hp sewage pump, 200-208V, 20′ cord and manual operation.
| Item: | 520125 |
| Model: | 20S-CIM |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phase | Three-Phase |
| Amps – Full Load | 14.5 A |
| Amps – Starting | 32 A |
| Full Load Watts | 2769 W |
| Volts | 200 VAC / 208 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SOOW |
| Pump Power Cord Gauge | 14-4 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 205 gpm / 12300 gph |
| Shut-Off | 77 ft |
| Shut Off Height – 60Hz | 77 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Brass |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Not Applicable |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 3 “ |
| Product Length | 12.93 “ |
| Product Width | 8.42 “ |
| Product Height | 18.4 “ |
| Pump Length | 12.93 “ |
| Product Weight | 95 lb |
| Product Weight w/ Pack | 96 lb |
| Carton Length | 14.81 “ |
| Carton Width | 10.44 “ |
| Carton Height | 22 “ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
