520225 – 20E-CIM
Click to rate this post!
[Total: 0 Average: 0]

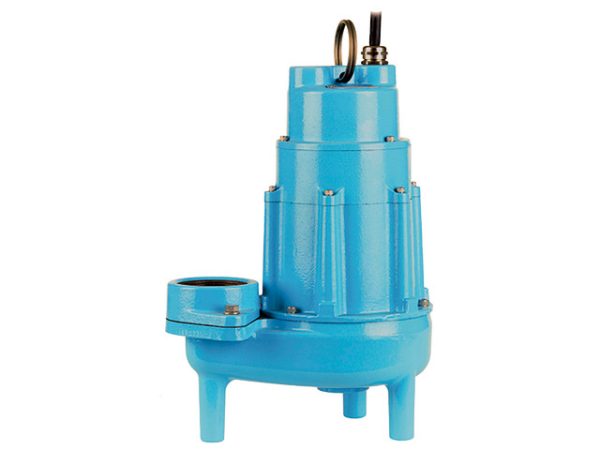

2 hp effluent pump, 200 V, 3 phase , 20′ cord, 2″ discharge, manual operation
| Item: | 520225 |
| Model: | 20E-CIM |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phase | Three-Phase |
| Volts | 200 VAC |
| Cord Length | 20 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 135 gpm / 8100 gph |
| Max Flow Rate – 50Hz | 0 gpm / 0 gph |
| Shut-Off | 110 ft |
| Shut Off Height – 60Hz | 110 ft |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Cast Iron Epoxi |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Pump Length | 12.92 “ |
| Product Weight w/ Pack | 92 lb |
| Carton Length | 14.5 “ |
| Carton Width | 10.13 “ |
| Carton Height | 21 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
