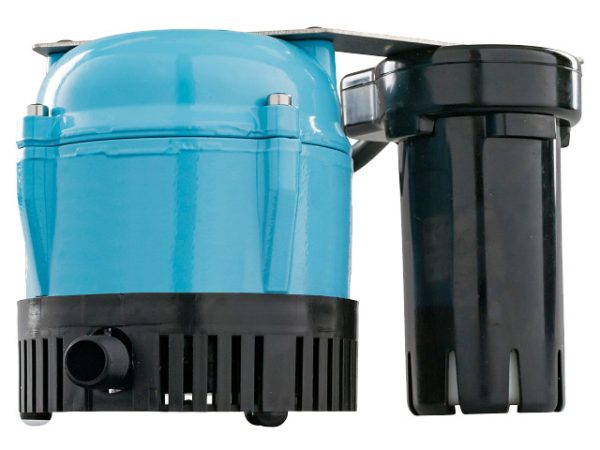

550521 – 1-ABS
Click to rate this post!
[Total: 0 Average: 0]

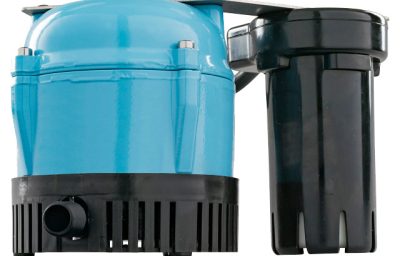

For removal of condensation from air conditioner drain pan or reservoir, the ABS-1 Series includes a shallow pan tank design, 1/150 hp, fully automatic start/stop, advanced mechanical switch, stainless steel shaft, and screened intake.
| Item: | 550521 |
| Model: | 1-ABS |
Ratings |
|
| HP | 1/150 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 70 W |
| Volts | 115 VAC |
| Cord Length | 9 ft |
| Maximum Flow Rate – 60Hz | 3.41 gpm / 205 gph |
| Shut-Off | 10 ft |
| Max PSIG – 60Hz | 4.3 PSI |
| Safety Switch | No |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Check Valve | No |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.25 “ |
| Suction Type | Screened |
| Product Length | 6.09 “ |
| Product Width | 5.87 “ |
| Product Height | 4.31 “ |
| Pump Length | 6.09 “ |
| Product Weight | 3.61 lb |
| Product Weight w/ Pack | 4.11 lb |
| Carton Length | 7 “ |
| Carton Width | 5.63 “ |
| Carton Height | 5.75 “ |
| Tubing Included | No |
Other |
|
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
