553130101 – HT-VCL-30-P
Click to rate this post!
[Total: 0 Average: 0]

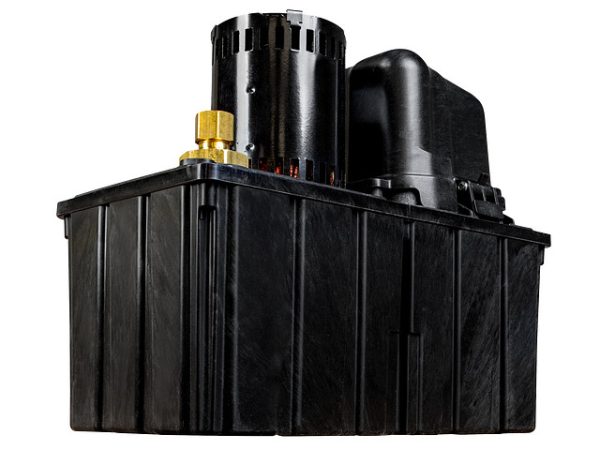

The HT-VCL-30P 115 Volt high-temperature condensate removal pump with 1-gallon collection tank is designed for plenum applications with the capability to handle the most difficult commercial applications.
| Item: | 553130101 |
| Model: | HT-VCL-30-P |
Ratings |
|
| HP | 1/8 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.9 A |
| Full Load Watts | 134 W |
| Volts | 115 VAC |
| Cord Length | 14 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 5.83 gpm / 350 gph |
| Max PSIG | 13.9 PSI |
| Shut-Off | 32 ft |
| Maximum Suction Lift | 9.75 Meters |
| Safety Switch | Yes |
| Tank Capacity | 1 gal |
Liquid |
|
| Max Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Base Material | Polypropylene |
| Pump Body Material | Polypropylene |
| Impeller Type | Closed |
| Impeller Material | Noryl |
| Check Valve | Yes |
| Engine Type For Driven Pumps | Not Applicable |
Installation |
|
| Discharge Type | Barb |
| Discharge | 0.38 “ |
| Suction Type | Screened |
| Product Length | 12 “ |
| Product Width | 6 “ |
| Product Height | 10.2 “ |
| Pump Length | 12 “ |
| Product Weight | 9.5 lb |
| Product Weight w/ Pack | 11 lb |
| Carton Length | 15.12 “ |
| Carton Width | 8.25 “ |
| Carton Height | 12.56 “ |
| Tubing Included | No |
Other |
|
| Minimum Order Quantity | 1 |
| Motor Component Part Number | 977260 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 24 Months |
