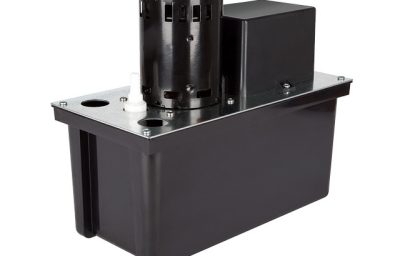

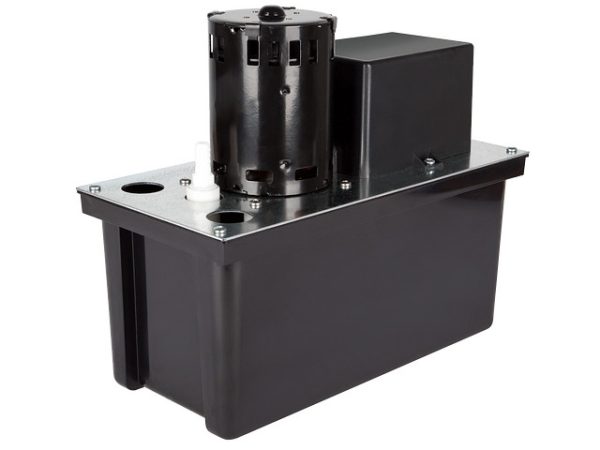

553211 – VCL-24ULS (230V)

Click to rate this post!

[Total: 0 Average: 0]

VCL-24ULS Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate. Features 1/18 horsepower motor, 1 gallon tank capacity, flow rate of 270 GPH at 1′ and handles up to 120 degrees Fahrenheit.

Item:	553211
Model:	VCL-24ULS (230V)

Ratings
HP	1/18 hp
Frequency	50Hz/60Hz
Amps – Full Load	1.2 A
Full Load Watts	148 W
Volts	230 VAC
Cord Length	6 ft
Maximum Flow Rate – 60Hz	3.33 gpm / 200 gph
Max PSIG	10.4 PSI
Max Flow Rate – 50Hz	4.5 gpm / 270 gph
Shut-Off	24 ft
Safety Switch	Yes
Liquid
Max Fluid Temperature	120 °F

Materials of Construction
Pump Body Material	Plastic
Check Valve	Yes
Installation
Discharge	0.25 “
Product Length	12.11 “
Product Width	6 “
Product Height	10.4 “
Pump Length	12.11 “
Product Weight	8.1 lb
Product Weight w/ Pack	8.6 lb
Carton Length	12.88 “
Carton Width	6.5 “
Carton Height	11 “
Tubing Included	No
Other
Minimum Order Quantity	1
Accessories / Repair Kits	Tank 153502 Cover, Volute 153110 Impeller 153131 Adapter, 3/8″” 153300 Seal Ring 924038 Switch Pump 950337 Overflow Detection Switch 950333 T-20/25 25 pieces of 20′ (6.01m) length 3/8″” (9.5 mm) ID VC tubing 599033 T-3/8 100′ (640.1 m) of 3/8″” (9.5 mm) ID x1/2″” (12.37 mm) OD clear tubing 599107 CV-10 1/4″” FNPT (6.35 mm) to 3/8″” (9.5 mm) ID vinyl tubing 599065 CV-14/24 1/4″” MNPT (6.35 mm) to 3/8″” (9.5 mm) OD rigid plastic or copper tubing 599069
Electrical Agency Approvals	CSA/UL
Standard Warranty	12 Months
