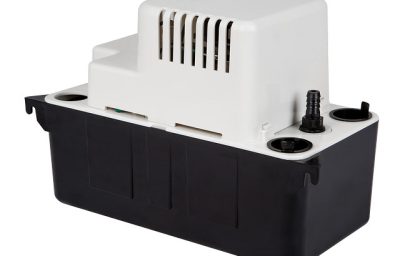

The VCMA-15ULS is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.
| Item: | 554405 |
| Model: | VCMA-15ULS |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
The VCMA-15ULS is ideal for automatic collection and removal of condensate from air conditioning, refrigeration and de-humidification equipment when gravity drainage is not possible or practical.
| Item: | 554405 |
| Model: | VCMA-15ULS |
Ratings |
|
| HP | 1/50 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1 A |
| Full Load Watts | 60 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 1.08 gpm / 65 gph |
| Max PSIG | 6.5 PSI |
| Max Flow Rate – 50Hz | 1.08 gpm / 65 gph |
| Shut-Off | 15 ft |
| Maximum Suction Lift | 4.5 Meter |
| Max Solid Handling Size | 0 “ |
| Safety Switch | Yes |
| Tank Capacity | 0.5 gal |
Liquid |
|
| Max Fluid Temperature | 75 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Impeller Type | Semi-open |
| Impeller Material | GF Polypropylene |
| Check Valve | Yes |
Installation |
|
| Discharge Type | Barb |
| Discharge | 0.38 “ |
| Suction Type | Screened |
| Product Length | 11 “ |
| Product Width | 5 “ |
| Product Height | 7 “ |
| Pump Length | 11 “ |
| Product Weight | 4.5 lb |
| Product Weight w/ Pack | 5 lb |
| Carton Length | 12 “ |
| Carton Width | 5 “ |
| Carton Height | 7.13 “ |
| Tubing Included | No |
Other |
|
| Accessories Included | Removable 3/8″ barbed check valve |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
