558929 – LGS-50-PREM
Click to rate this post!
[Total: 0 Average: 0]

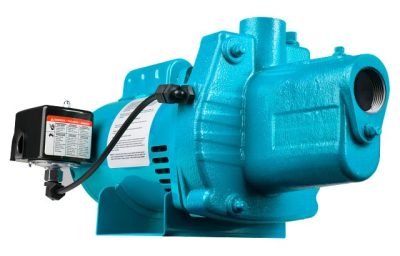

Little Giant LGS-50 is a premium cast iron shallow well jet pump ideal for the supply of fresh water to rural homes, farms and cabins that have suction lifts down to 25′.
| Item: | 558929 |
| Model: | LGS-50-PREM |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Motor Type | Surface |
| Continuous Duty | No |
| Minimum Flow Rate – 60Hz | 12.6 gpm / 756 gph |
| Rated Flow Rate – 60Hz | 12.6 gpm / 756 gph |
| Shut-Off | 150 ft |
| Shut Off Height – 60Hz | 150 ft |
| Switch Type | Adjustable Pressure Switch |
| Motor Enclosure Type | ODP |
Liquid |
|
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Glass Filled Thermoplastic |
| Seal Material | Carbon Ceramic |
| Seal Type | Mechanical Seal |
| Diffuser Material | Glass-filled thermoplastic |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1 “ |
| Suction | 1.25 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 17.72 “ |
| Product Width | 9.05 “ |
| Product Height | 9.05 “ |
| Pump Length | 17.72 “ |
| Product Weight | 37.6 lb |
| Product Weight w/ Pack | 38 lb |
| Carton Length | 20.5 “ |
| Carton Width | 10.5 “ |
| Carton Height | 10.25 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
| Repair Kit Available | Yes |
