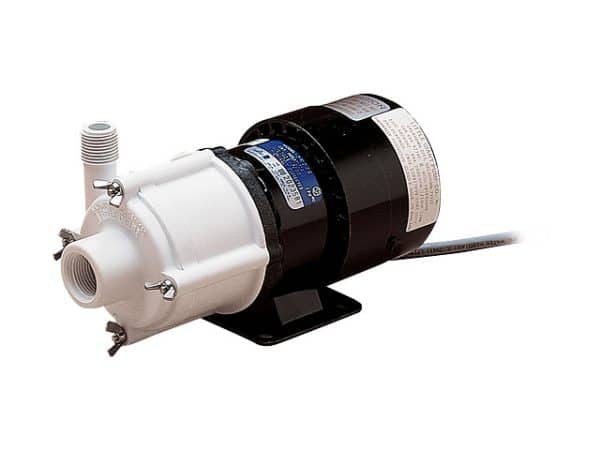

Little Giant 750 GPH 115V Magnetic Drive Pump with 6′ Power Cord for semi-corrosive chemicals and solutions. The MD-SC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. It has 115 Vac 50/60 Hz Single Phase 6 Foot Cord and 1/12 Horse Power, 750 Gallon Per Hour At 1 Foot Rise 21.9 Foot Max Height, Fluid temperature is 150F and Ambient air temperature is 77F.
| Item: | 581503 |
| Model: | 3-MD-SC |
Ratings |
|
| HP | 1/12 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 2.4 A |
| Full Load Watts | 190 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 12.5 gpm / 750 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 21.9 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 21.9 ft |
| Max PSIG – 60Hz | 9.5 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
| Check Valve | No |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 9.6 “ |
| Product Width | 4 “ |
| Product Height | 4.9 “ |
| Pump Length | 9.6 “ |
| Product Weight | 8 lb |
| Product Weight w/ Pack | 8.5 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
