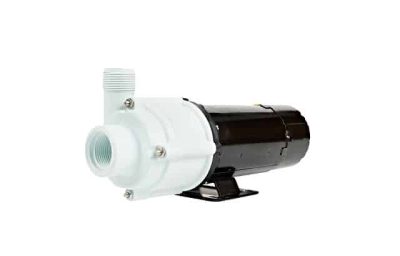

The Little Giant 1000 GPH 3-MDQX-SC non-submersible aquarium pump is ideal for use with salt water or fresh water aquarium filtration systems.
| Item: | 581507 |
| Model: | 3-MDQX-SC |
Ratings |
|
| HP | 1/15 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.9 A |
| Full Load Watts | 100 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 18.33 gpm / 1100 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 14 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 14 ft |
| Max PSIG – 60Hz | 6.1 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Seal Material | Nitrile Rubber |
| Seal Type | O-ring |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 1 “ |
| Suction | 1 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 11.6 “ |
| Product Width | 3.88 “ |
| Product Height | 5.25 “ |
| Pump Length | 11.6 “ |
| Product Weight | 8.75 lb |
| Product Weight w/ Pack | 9.25 lb |
| Carton Length | 13.13 “ |
| Carton Width | 8.63 “ |
| Carton Height | 5.94 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
