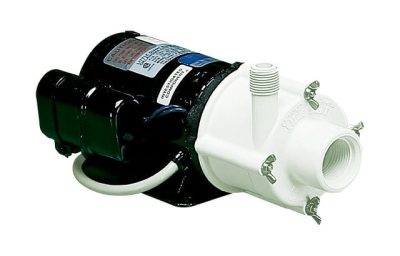

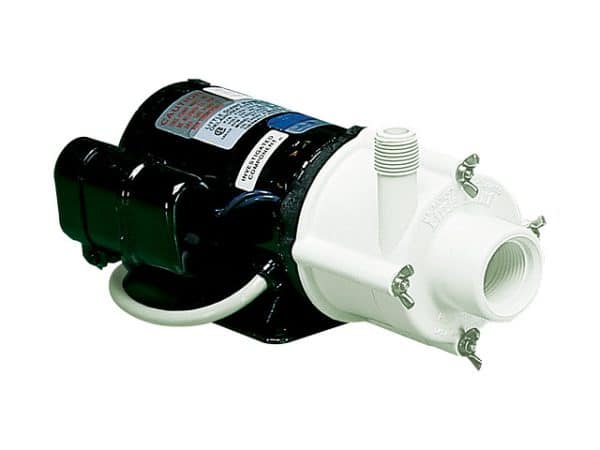

The Little Giant MD-SC Series are magnetically driven pumps designed for the circulation of semi-corrosive solutions. Features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.
| Item: | 582503 |
| Model: | 4-MD-SC |
Ratings |
|
| HP | 1/10 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.7 A |
| Full Load Watts | 185 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 14 gpm / 840 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 24.3 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 24.3 ft |
| Max PSIG – 60Hz | 10.5 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 9.6 “ |
| Product Width | 5.5 “ |
| Product Height | 4.9 “ |
| Product Weight | 9 lb |
| Product Weight w/ Pack | 8.45 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
