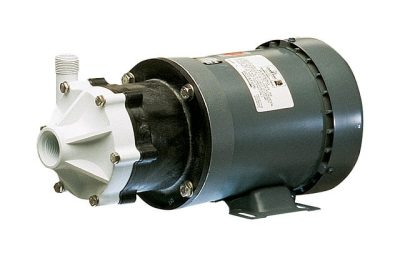

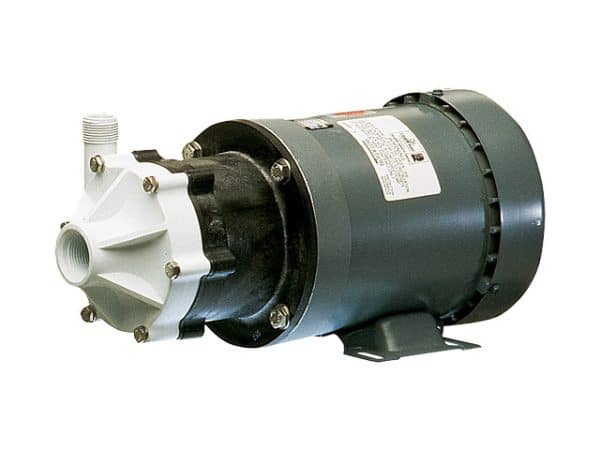

585504 – TE-5.5-MD-SC
Click to rate this post!
[Total: 0 Average: 0]
Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected TEFC motor with sleeve bearings.
| Item: | 585504 |
| Model: | TE-5.5-MD-SC |
Ratings |
|
| Frequency | 50 Hz |
| Amps – Full Load | 3 A |
| Full Load Watts | 325 W |
| Volts | 115 VAC / 230 VAC |
| Maximum Flow Rate – 60Hz | 31.7 gpm / 1902 gph |
| Minimum Flow Rate – 60Hz | 0.03 gpm / 2 gph |
| Shut-Off | 40.5 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 40.5 ft |
| Max PSIG – 60Hz | 12.7 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 11.2 “ |
| Product Width | 5.2 “ |
| Product Height | 7.3 “ |
| Product Weight | 16 lb |
| Product Weight w/ Pack | 33 lb |
| Carton Length | 20.13 “ |
| Carton Width | 10.63 “ |
| Carton Height | 8.38 “ |
Other |
|
| Standard Warranty | 12 Months |
